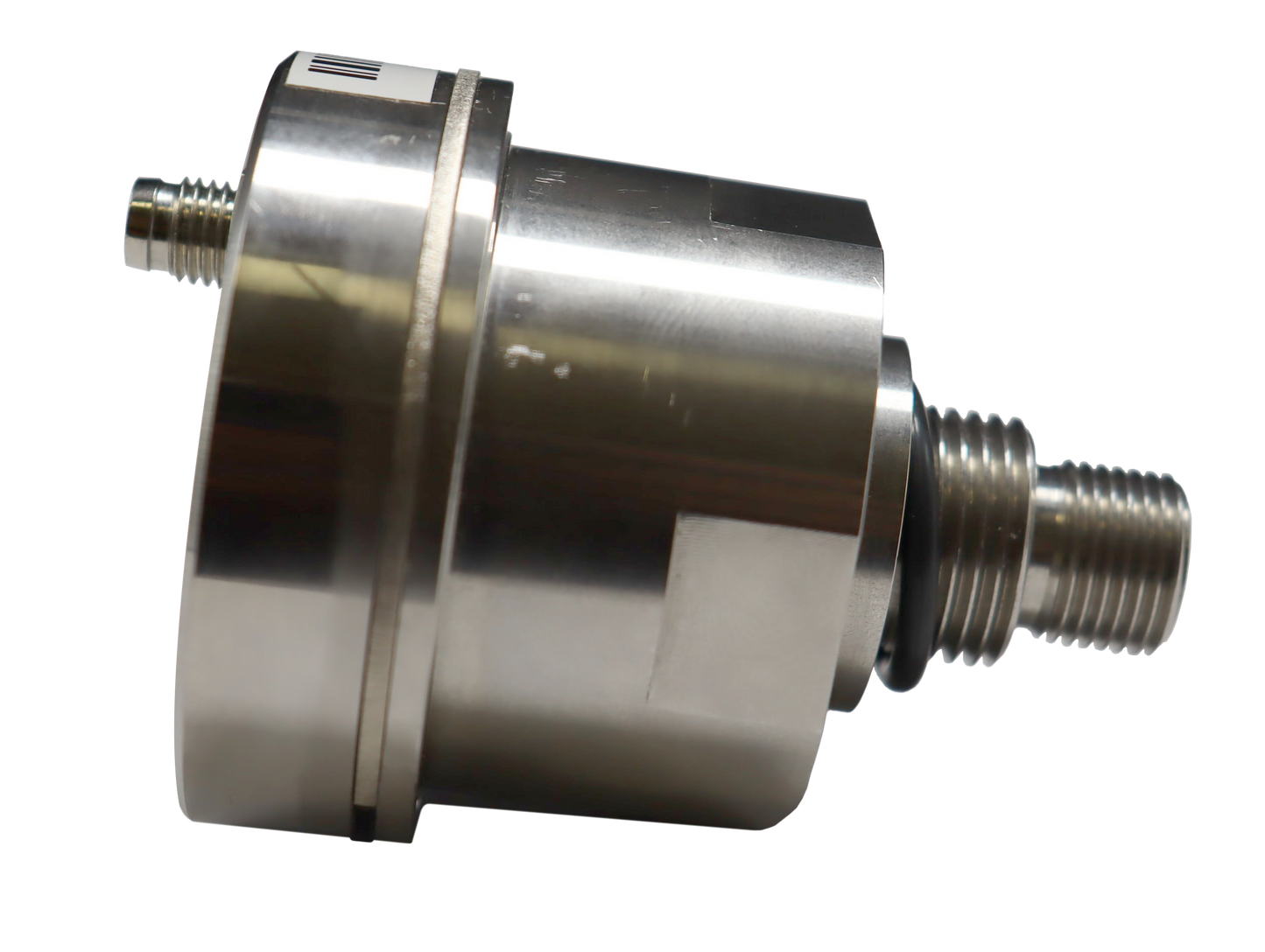

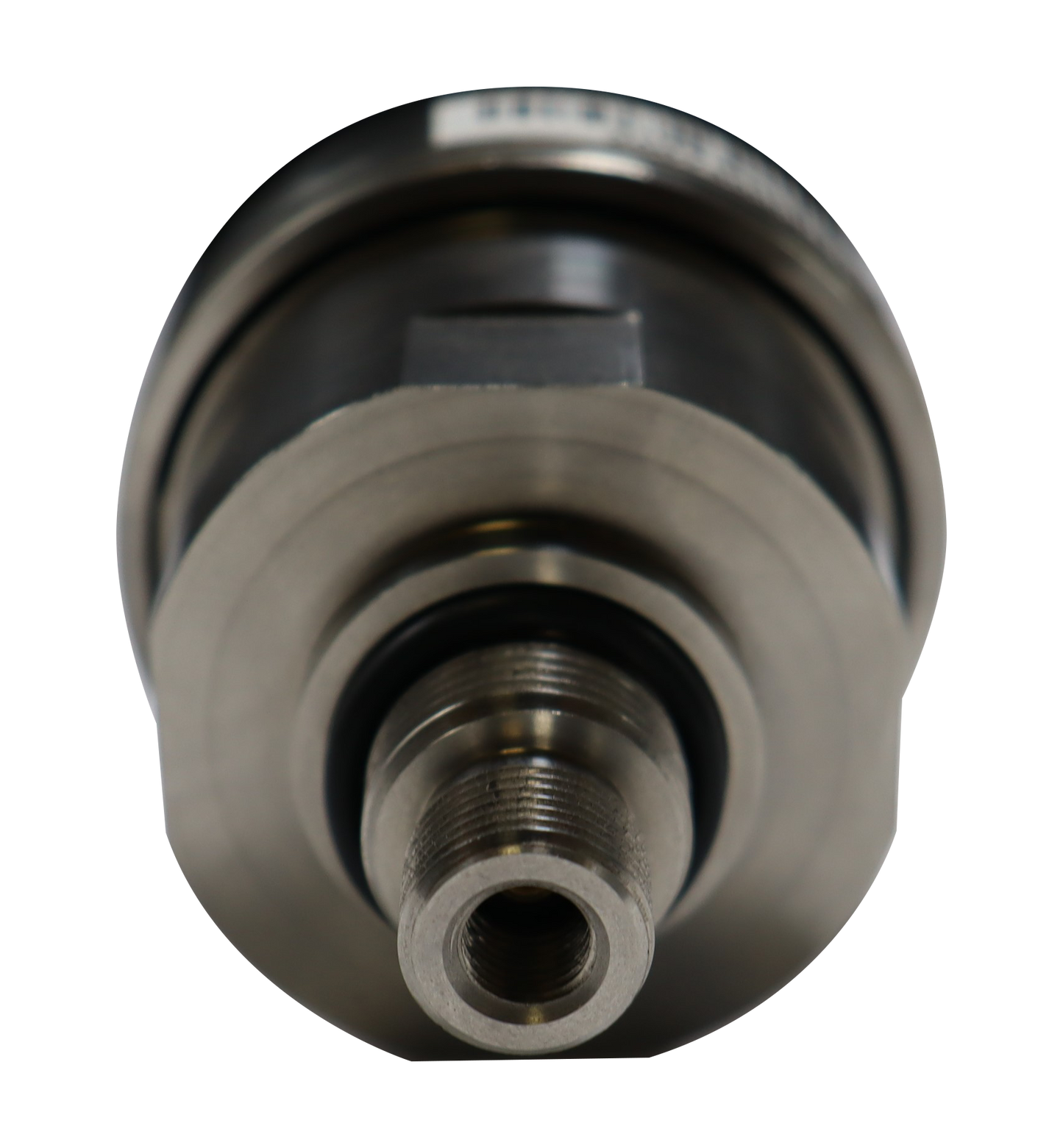

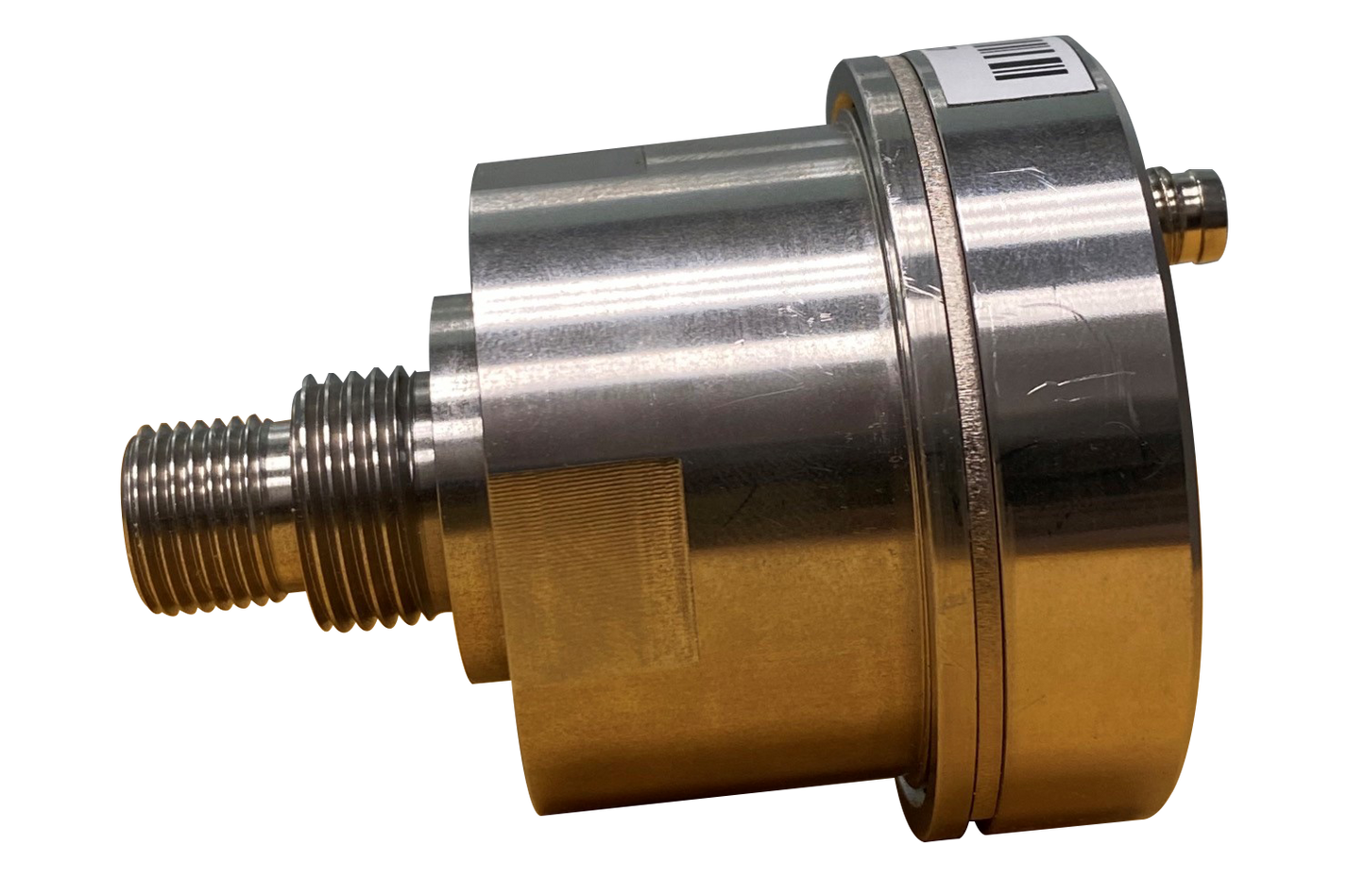

Dew Point Transmitter Looped-Powered Model LPDT2 - with Aluminum Oxide Sensor Technology

Dew Point Transmitter Looped-Powered Model LPDT2 - with Aluminum Oxide Sensor Technology

$1,650.00 USD
$1,650.00 USD
Sale Sold out
Title

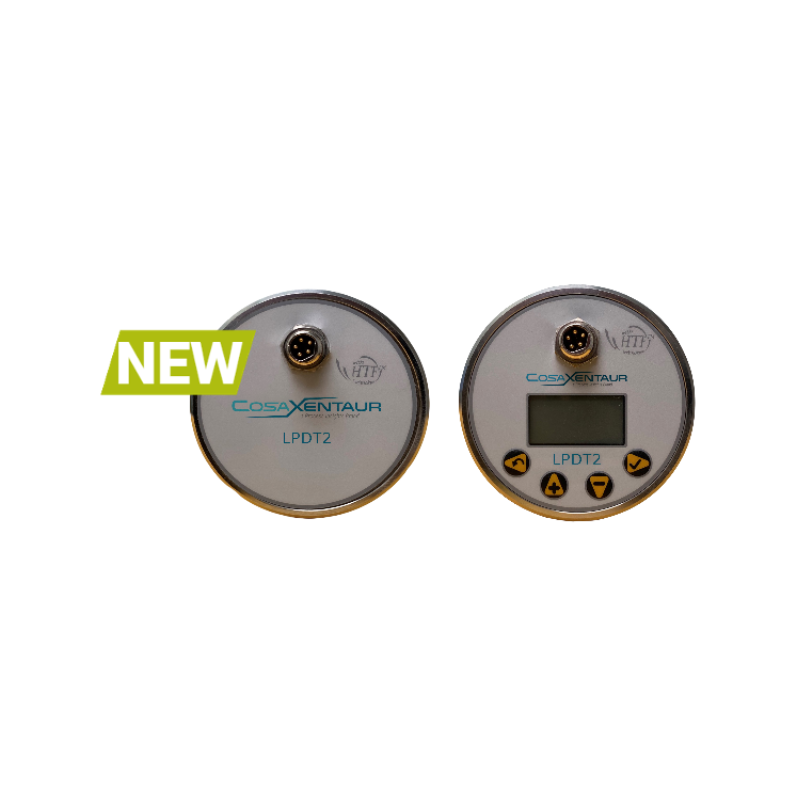

Our NEW COSA XENTAUR™ LPDT2™ dew point transmitter is ultra-compact, and loop-powered (two-wire).  It comes with or without a display. LPDT2 with display is a fully functional instrument operated through a miniature custom LCD display and four push buttons, using the same user-friendly interface as all our hygrometers.

Pricing for US, LATAM, and Canada Only.

Outside of US, LATAM, or Canada, please request a quote. sales.hou@process-insights.com

The LPDT2 uses a thin-film capacitive polymer sensor to provide accurate and stable measurements of dew point temperature, which is a key indicator of moisture content.

  • Loop Powered, with 4-20mA analog output
  • Fast Aluminum Oxide Sensors using our patented HTF™ (hyper-thin film) technology
  • Data Logging outputs via MODBUS 485
  • User Selectable Settings for units of measure
  • 3 Field Adjustment options
  • NEMA 4 IP66 Housing
  • Display unit can be rotated to read upright
  • Optional CL 1 Div 2 area rating
  • Low cost of ownership and maintenance

AVAILABLE CONFIGURATIONS

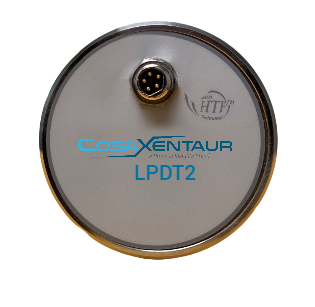

LPDT2-65, general purpose, No Display

LPDT2-65, No Display, Loop Powered Dewpoint Meter with XTR-65 Sensor and fitting. Including 5 pin connector with 4-20mA and RS485 outputs, 16ft Connector Cable and User's Manual, Range: - 65/+20°C (- 85/+68°F), Accuracy: ±3°C (±5.5°F)



LPDT2-65, CL1 Div 2, No Display

LPDT2-65, No Display, Class 1 Division 2 Certified:  Loop Powered Dewpoint Meter with XTR-65 Sensor and fitting.   Including 5 pin connector with 4-20mA and RS485 outputs, 16ft Connector Cable and User's Manual, Range: - 65/+20°C (- 85/+68°F), Accuracy: ±3°C (±5.5°F)



LPDT2-100, general purpose, No Display

LPDT2-100, No Display, Loop Powered Dewpoint Meter with XTR-100 Sensor and fitting.  Including 5 pin connector with 4-20mA and RS485 outputs, 16ft Connector Cable and User's Manual   Range -100ºC to +20ºC    Accuracy: ±3°C (±5.5°F)



LPDT2-100, CL1 Div 2, No Display

LPDT2-100, No Display, Class 1 Division 2 Certified:  Loop Powered Dewpoint Meter with XTR-100 Sensor and fitting.   Including 5 pin connector with 4-20mA and RS485 outputs, 16ft Connector Cable and User's Manual Range -100ºC to +20ºC    Accuracy: ±3°C (±5.5°F)



LPDT2-65, general purpose, With Display

LPDT2-65 with Display, Loop Powered Dewpoint Meter, with XTR-65 Sensor and fitting. Including 5 pin connector with 4-20mA and RS485 outputs, 16ft Connector Cable and User's Manual, Range: - 65/+20°C (- 85/+68°F), Accuracy: ±3°C (±5.5°F)



LPDT2-65, CL1 Div 2, With Display

LPDT2-65 with Display, Class 1 Division 2 Certified:  Loop Powered Dewpoint Meter with XTR-65 Sensor and fitting.  Including 5 pin connector with 4-20mA and RS485 outputs, 16ft Connector Cable and User's Manual, Range: - 65/+20°C (- 85/+68°F), Accuracy: ±3°C (±5.5°F)



LPDT2-100, general purpose, With Display

LPDT2-100 with Display, Loop Powered Dewpoint Meter, with XTR-100 Sensor. Including sensor fitting, 5 pin connector with 4-20mA and RS485 outputs, 16ft Connector Cable and User's Manual, Range -100ºC to +20ºC Accuracy: ±3°C (±5.5°F)



LPDT2-100, CL1 Div 2, With Display

LPDT2-100 with Display, Class 1 Division 2 Certified:  Loop Powered Dewpoint Meter with XTR-100 Sensor and fitting.  Including 5 pin connector with 4-20mA and RS485 outputs, 16ft Connector Cable and User's Manual, Range -100ºC to +20ºC    Accuracy: ±3°C (±5.5°F)
