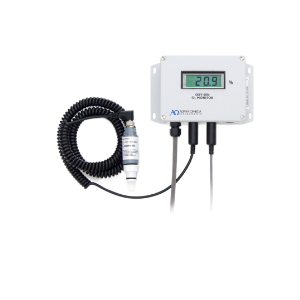

OXY-SEN Percent Oxygen Monitor
OXY-SEN Percent Oxygen Monitor
Couldn't load pickup availability
Our ALPHA OMEGA INSTRUMENTS™ OXY-SEN™ Percent Oxygen Monitor is an economically priced percent oxygen monitoring system equipped with a standard measuring range of 0-100%. It comes with dual 4-20 mADC recorder outputs that are scaled over 0-100% and 0-25%.
Pricing for US, LATAM, and Canada Only.
Outside of US, LATAM, or Canada, please request a quote. sales.hou@process-insights.com
It was designed primarily for applications where the user prefers to mount the gas diffusion end of the sensor through a chamber, glove box, reactor, etc. The diffusion end of the sensor has a threaded stock, providing an easy and convenient way of installing the sensor through the wall of a chamber, glove box, etc. by simply drilling and tapping an appropriately sized hole. Ten feet of coiled interconnecting sensor cable is supplied with each OXY-SEN Percent Oxygen Monitor.
FEATURES
- A factory Certificate of Performance Verification and Calibration is included at no additional charge. The product performance is verified in accordance with manufacturing specifications using a National Institute of Standards and Technology (NIST) traceable transfer calibrated standard gas mix.
- Extended Life Oxygen Sensor: Expected Life upwards of 3-4 years
- Acid Gas Resistant Sensor: Operates well in harsh atmospheres
- Low Cost of Ownership
- Excellent Speed of Response: Responds instantaneously to changes in oxygen
PERFORMANCE
- A factory Certificate of Performance Verification and Calibration is included at no additional charge. The product performance is verified in accordance with manufacturing specifications using a National Institute of Standards and Technology (NIST) traceable transfer calibrated standard gas mix.
- Extended Life Oxygen Sensor: Expected Life upwards of 3-4 years
- Acid Gas Resistant Sensor: Operates well in harsh atmospheres
- Low Cost of Ownership
- Excellent Speed of Response: Responds instantaneously to changes in oxygen
CONSTRUCTION
- Dimensions of Electronics Enclosure: 5-3/4 in.(146.05 mm) Width 5-1/2 in.(139.70 mm) Height 1-1/4 in.(31.75 mm) Depth Note: All dimensions are without optional equipment
- Dimensions of Sensor: 1.85 in. (47 mm) Height 0.9 in.(22.86 mm) Depth
- Thread depth: 0.29 in. (7.34 mm) (exclusive of O-ring)
- Thread size: M16 X 1
- Weight (with 10’ of sensor cable): < 2 pounds (<0.907 kg)
ELECTRICAL
- Display: 3-1/2-digit liquid crystal
- Input Power: 115/230 VAC, 50-60Hz or 24 VDC
- Analog Output (Optional): 4-20 mADC scaled over 0-100% O2 and 0-25% O2(selectable by connector position)
SAMPLE GAS CHARACTERISTICS
- Storage Temperature Range: 40° to 104°F (5° to 40°C)
- Sample Gas Pressure Limits: < 2 psig (0.14 kg/cm2)
|
OXY-SEN with universal AC power |
OXY-SEN Oxygen Monitor with a single range of 0-100%. The enclosure is designed to be flush mounted onto a vertical surface such as an instrument panel, glove box, hypoxic chamber, etc. The general-purpose enclosure is fabricated from steel and painted with a baked-on finish. Power is 115/230 VAC/50-60Hz with a six-foot (~2 meter) power cord supplied. The OXY-SEN is equipped with a 3-1/2-digit front panel liquid crystal display. The oxygen sensor is equipped with a threaded end for ease of installation. Ten feet (~3 meters) of interconnecting sensor cable is included with a plug-in jack to the electronics. This version of the OXY-SEN includes a 4-20mADC analog output over either a range of 0-100% oxygen or 0-25% oxygen. Warranty: 2-year electronics and 1-year sensor Application: For In-situ glovebox and chambers (sensor in chamber or thread into) with environment between atmosphere and 2.0 psig. Vacuums to 12.5 psia are permissible. For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 2.0 psig, flowrate 0.5 to 1.5 LPM. An optional sensor housing is available. |
|
OXY-SEN with 24VDC power |
OXY-SEN Oxygen Monitor with a single range of 0-100%. The enclosure is designed to be flush mounted onto a vertical surface such as an instrument panel, glove box, hypoxic chamber, etc. The general-purpose enclosure is fabricated from steel and painted with a baked-on finish. Power is 24VDC with a six-foot (~2 meter) power cord with barrel connector. Optional UL/ETL approved eternal power supply available separately. The OXY-SEN is equipped with a 3-1/2 digit front panel liquid crystal display. The oxygen sensor is equipped with a threaded end for ease of installation. Ten feet (~3 meters) of interconnecting sensor cable is included with a plug-in jack to the electronics. This version of the OXY-SEN includes a 4-20mADC analog output over either a range of 0-100% oxygen or 0-25% oxygen. Warranty: 2-year electronics and 1-year sensor Application: For In-situ glovebox and chambers (sensor in chamber or threaded into) with environment between atmosphere and 2.0 psig. Vacuums to 12.5 psia are permissible. For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 2.0 psig, flowrate 0.5 to 1.5 LPM. An optional sensor housing is available. |
