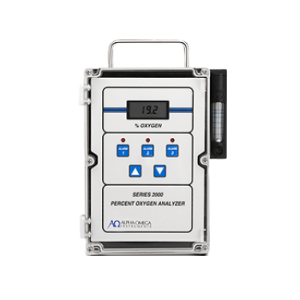

Series 2000 Percent Oxygen Analyzer

Series 2000 Percent Oxygen Analyzer

$4,204.00 USD
$4,204.00 USD
Sale Sold out
Size

The ALPHA OMEGA INSTRUMENTS™ Series 2000™ Percent Oxygen Analyzer is a rugged, microprocessor-controlled analyzer designed for continuous oxygen monitoring from 0–1% to 100% oxygen. Available in wall-mount, panel-mount, and benchtop configurations, the Series 2000 combines an extended-life electrochemical oxygen sensor with Enhanced Electrolyte System (EES) technology to deliver accurate measurements, exceptional long-term stability, and low maintenance even in applications containing high concentrations of carbon dioxide. With configurable ranges, auto-ranging capability, multiple alarm relays, and flexible sample conditioning options, the Series 2000 is an ideal solution for demanding industrial process and laboratory applications.

If outside the US, please contact us at sales.hou@process-insights.com.

DOWNLOAD DATASHEET

CAT-2000-FXWMT-XX Series 2000 Percent Oxygen Analyzer with a measuring range of "F" Auto Multi-Range 0-10/25/100 Percent. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators. All models are sample pump ready.
- Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID).
- Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable).
- Features a general purpose polycarbonate wall mount enclosure with sampling and electrical connections mounted on the sides or bottom of the enclosure.
- Includes 1/4 inch stainless steel compression gas connection on the inlet; no flowmeter, regulator or pump options; includes a 1/4" Quick connect fitting on the outlet.
- Equipped with our standard percent electrochemical sensor (CAT-2SEN).
- Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief.
- Includes a compression to 1/4 inch quick connect adapter.
- Warranty: 2-year electronics and 1-year sensor		 Series 2000 Percent Oxygen Analyzer - Range of "F" Auto Multi-Range 0-10/25/100 Percent - Base Model. 0-10/25/100 Percent Pressure: 0.1 to 1.5 psig
Flow: 1.0 to 2.0 SCFH (0.5 to 1.0 liter/min)		 CAT-SS-4TF-2 - Particulate Filter
CAT-AFM20 - Coalescing Filter
CAT-2000-FXWMT-RM Series 2000 Percent Oxygen Analyzer with a measuring range of "F" Auto Multi-Range 0-10/25/100 Percent. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators. All models are sample pump ready.
- Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID).
- Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable).
- Features a general purpose polycarbonate wall mount enclosure with sampling and electrical connections mounted on the sides or bottom of the enclosure.
- Includes 1/4 inch stainless steel compression gas connection on the inlet, a pressure regulator (max 100 psi) with a stainless steel needle valve on the sample inlet and flowmeter without control valve on the outlet.
- Equipped with our standard percent electrochemical sensor (CAT-2SEN).
- Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief.
- Includes a compression to 1/4 inch quick connect adapter.
- Warranty: 2-year electronics and 1-year sensor		 Series 2000 Percent Oxygen Analyzer - Range of "F" Auto Multi-Range 0-10/25/100 Percent - Pressure Regulator Model. 0-10/25/100 Percent Pressure: 1.5 psig to 100 psig
 CAT-SS-4TF-2 - Particulate Filter
CAT-AFM20 - Coalescing Filter
CAT-2000-FXWMT-VA Series 2000 Percent Oxygen Analyzer with a measuring range of "F" Auto Multi-Range 0-10/25/100 Percent. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators. All models are sample pump ready.
- Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID).
- Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable).
- Features a general purpose polycarbonate wall mount enclosure with sampling and electrical connections mounted on the sides or bottom of the enclosure.
- Includes 1/4 inch stainless steel compression gas connection on the inlet, a 24vdc sample pump with barbed fittings and flowmeter with control valve on the outlet.
- Equipped with our standard percent electrochemical sensor (CAT-2SEN).
- Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief.
- Includes a compression to 1/4 inch quick connect adapter.
- Warranty: 2-year electronics and 1-year sensor		 Series 2000 Percent Oxygen Analyzer - Range of "F" Auto Multi-Range 0-10/25/100 Percent - Pump Model. 0-10/25/100 Percent Pressure: Atmospheric  down to -1.7 psig CAT-SS-4TF-2 - Particulate Filter
CAT-AFM20 - Coalescing Filter
CAT-2000-GXWMT-XX Series 2000 Percent Oxygen Analyzer with a measuring range of "G" Auto Multi-Range 0-5/10/25 Percent. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators. All models are sample pump ready.
- Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID).
- Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable).
- Features a general purpose polycarbonate wall mount enclosure with sampling and electrical connections mounted on the sides or bottom of the enclosure.
- Includes 1/4 inch stainless steel compression gas connection on the inlet; no flowmeter, regulator or pump options; includes a 1/4" Quick connect fitting on the outlet.
- Equipped with our standard percent electrochemical sensor (CAT-2SEN).
- Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief.
- Includes a compression to 1/4 inch quick connect adapter.
- Warranty: 2-year electronics and 1-year sensor		 Series 2000 Percent Oxygen Analyzer - Range of "G" Auto Multi-Range 0-5/10/25 Percent - Base Model. 0-5/10/25 Percent Pressure: 0.1 to 1.5 psig
Flow: 1.0 to 2.0 SCFH (0.5 to 1.0 liter/min)		 CAT-SS-4TF-2 - Particulate Filter
CAT-AFM20 - Coalescing Filter
CAT-2000-GXWMT-RM Series 2000 Percent Oxygen Analyzer with a measuring range of "G" Auto Multi-Range 0-5/10/25 Percent. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators. All models are sample pump ready.
- Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID).
- Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable).
- Features a general purpose polycarbonate wall mount enclosure with sampling and electrical connections mounted on the sides or bottom of the enclosure.
- Includes 1/4 inch stainless steel compression gas connection on the inlet, a pressure regulator (max 100 psi) with a stainless steel needle valve on the sample inlet and flowmeter without control valve on the outlet.
- Equipped with our standard percent electrochemical sensor (CAT-2SEN).
- Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief.
- Includes a compression to 1/4 inch quick connect adapter.
- Warranty: 2-year electronics and 1-year sensor		 Series 2000 Percent Oxygen Analyzer - Range of "G" Auto Multi-Range 0-5/10/25 Percent - Pressure Regulator Model. 0-5/10/25 Percent Pressure: 1.5 psig to 100 psig
 CAT-SS-4TF-2 - Particulate Filter
CAT-AFM20 - Coalescing Filter
CAT-2000-GXWMT-VA Series 2000 Percent Oxygen Analyzer with a measuring range of "G" Auto Multi-Range 0-5/10/25 Percent. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators. All models are sample pump ready.
- Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID).
- Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable).
- Features a general purpose polycarbonate wall mount enclosure with sampling and electrical connections mounted on the sides or bottom of the enclosure.
- Includes 1/4 inch stainless steel compression gas connection on the inlet, a 24vdc sample pump with barbed fittings and flowmeter with control valve on the outlet.
- Equipped with our standard percent electrochemical sensor (CAT-2SEN).
- Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief.
- Includes a compression to 1/4 inch quick connect adapter.
- Warranty: 2-year electronics and 1-year sensor		 Series 2000 Percent Oxygen Analyzer - Range of "G" Auto Multi-Range 0-5/10/25 Percent - Pump Model. 0-5/10/25 Percent Pressure: Atmospheric  down to -1.7 psig CAT-SS-4TF-2 - Particulate Filter
CAT-AFM20 - Coalescing Filter
CAT-2000-HXWMT-XX Series 2000 Percent Oxygen Analyzer with a measuring range of "H" Auto Multi-Range 0-1/10/25 Percent. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators. All models are sample pump ready.
- Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID).
- Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable).
- Features a general purpose polycarbonate wall mount enclosure with sampling and electrical connections mounted on the sides or bottom of the enclosure.
- Includes 1/4 inch stainless steel compression gas connection on the inlet; no flowmeter, regulator or pump options; includes a 1/4" Quick connect fitting on the outlet.
- Equipped with our standard percent electrochemical sensor (CAT-2SEN).
- Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief.
- Includes a compression to 1/4 inch quick connect adapter.
- Warranty: 2-year electronics and 1-year sensor		 Series 2000 Percent Oxygen Analyzer - Range of "H" Auto Multi-Range 0-1/10/25 Percent - Base Model.  0-1/10/25 Percent Pressure: 0.1 to 1.5 psig
Flow: 1.0 to 2.0 SCFH (0.5 to 1.0 liter/min)		 CAT-SS-4TF-2 - Particulate Filter
CAT-AFM20 - Coalescing Filter
CAT-2000-HXWMT-RM Series 2000 Percent Oxygen Analyzer with a measuring range of "H" Auto Multi-Range 0-1/10/25 Percent. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators. All models are sample pump ready.
- Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID).
- Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable).
- Features a general purpose polycarbonate wall mount enclosure with sampling and electrical connections mounted on the sides or bottom of the enclosure.
- Includes 1/4 inch stainless steel compression gas connection on the inlet, a pressure regulator (max 100 psi) with a stainless steel needle valve on the sample inlet and flowmeter without control valve on the outlet.
- Equipped with our standard percent electrochemical sensor (CAT-2SEN).
- Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief.
- Includes a compression to 1/4 inch quick connect adapter.
- Warranty: 2-year electronics and 1-year sensor		 Series 2000 Percent Oxygen Analyzer - Range of "H" Auto Multi-Range 0-1/10/25 Percent - Pressure Regulator Model.  0-1/10/25 Percent Pressure: 1.5 psig to 100 psig
 CAT-SS-4TF-2 - Particulate Filter
CAT-AFM20 - Coalescing Filter
CAT-2000-HXWMT-VA Series 2000 Percent Oxygen Analyzer with a measuring range of "H" Auto Multi-Range 0-1/10/25 Percent. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators. All models are sample pump ready.
- Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID).
- Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable).
- Features a general purpose polycarbonate wall mount enclosure with sampling and electrical connections mounted on the sides or bottom of the enclosure.
- Includes 1/4 inch stainless steel compression gas connection on the inlet, a 24vdc sample pump with barbed fittings and flowmeter with control valve on the outlet.
- Equipped with our standard percent electrochemical sensor (CAT-2SEN).
- Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief.
- Includes a compression to 1/4 inch quick connect adapter.
- Warranty: 2-year electronics and 1-year sensor		 Series 2000 Percent Oxygen Analyzer - Range of "H" Auto Multi-Range 0-1/10/25 Percent - Pump Model.  0-1/10/25 Percent Pressure: Atmospheric  down to -1.7 psig CAT-SS-4TF-2 - Particulate Filter
CAT-AFM20 - Coalescing Filter
View full details
