Series 2500 Percent Oxygen Transmitters
Series 2500 Percent Oxygen Transmitters
Couldn't load pickup availability

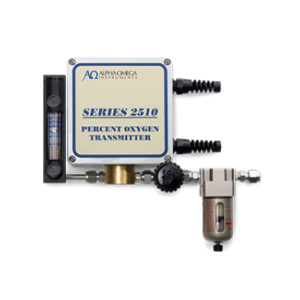

Our ALPHA OMEGA INSTRUMENTS™ Series 2500/2510™ Percent Oxygen Transmitters are blind transmitters designed to provide exceptional performance, accuracy, and stability. Percent oxygen measurement ranges are available from 0-2% to 0-100%. It is designed to provide accurate and dependable percent oxygen measurements in a variety of background gases.
Pricing for US, LATAM, and Canada Only.
Outside of US, LATAM, or Canada, please request a quote. sales.hou@process-insights.com
The Series 2500 Percent Oxygen Transmitters enclosure is made from durable polycarbonate and is rated for NEMA 4 (IP 66) service (may change with the addition of certain optional equipment). A 4-20 mADC output is provided that can be used with a data logger, recorder, PLC, DCS, etc. Options include pressure regulators, flow meters, sample filters.
The Series 2500 is a true loop powered version, and the Series 2510 is the AC powered (115/230 VAC, 50-60 Hz) counterpart and is recommended when AC power is available or preferred. Also, available in optional 24 VDC. In addition to the optional equipment mentioned above, the Series 2510 can be equipped with a sample pump.
|
2500 Loop powered, 0-10%, no options |
Series 2500 Loop Powered Percent Oxygen Transmitter. "C" 0-10/100.0 Percent Switch Selectable Range (Calibrated and shipped on the 0-10 percent range, 4-20mA Output scaled based upon switch selection.) Loop powered (14-32vdc - provided by user). Features a standard enclosure. Includes standard connectors on the sample outlet. Also includes a 4-20mADC analog output. Warranty: 2-year electronics and 1-year sensor No options included. No Options Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 1.5 psig, flowrate 0.5 to 1.5 LPM or customer will supply their own gas sample conditioning options. |
|
2500 Loop powered, 0-25%, no options |
Series 2500 Loop Powered Percent Oxygen Transmitter. "D" 0-25/100.0 Percent Switch Selectable Range (Calibrated and shipped on the 0-25 percent range, 4-20mA Output scaled based upon switch selection.) Loop powered (14-32vdc - provided by user). Features a standard enclosure. Includes standard connectors on the sample outlet. Also includes a 4-20mADC analog output. Warranty: 2-year electronics and 1-year sensor No options included. No Options Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 1.5 psig, flowrate 0.5 to 1.5 LPM or customer will supply their own gas sample conditioning options. |
|
2500 Loop powered, 0-100%, no options |
Series 2500 Loop Powered Percent Oxygen Transmitter. "F" 0-10/100.0 Percent Switch Selectable Range (Calibrated and shipped on the 0-100 percent range, 4-20mA Output scaled based upon switch selection.) Loop powered (14-32vdc - provided by user). Features a standard enclosure. Includes standard connectors on the sample outlet. Also includes a 4-20mADC analog output. Warranty: 2-year electronics and 1-year sensor. No options included. No Options Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 1.5 psig, flowrate 0.5 to 1.5 LPM or customer will supply their own gas sample conditioning options. |
|
2500 Loop powered, 0-10%, flowmeter, regulator |
Series 2500 Loop Powered Percent Oxygen Transmitter. "C" 0-10/100.0 Percent Switch Selectable Range (Calibrated and shipped on the 0-10 percent range, 4-20mA Output scaled based upon switch selection.) Loop powered (14-32vdc - provided by user). Features a standard enclosure. Includes standard connectors on the sample outlet; no filter; a pressure regulator (max 100 psi) with a stainless-steel needle valve with 1/4" compression fitting on the sample inlet; a flowmeter without a control valve on the sample outlet; a flowmeter without a control valve on the sample outlet. Also includes a 4-20mADC analog output. Warranty: 2-year electronics and 1-year sensor. Pressure Regulator Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 1.5 to 100 psig, flowrate 0.5 to 1.5 LPM. |
|
2500 Loop powered, 0-25%, flowmeter, regulator |
Series 2500 Loop Powered Percent Oxygen Transmitter. "D" 0-25/100.0 Percent Switch Selectable Range (Calibrated and shipped on the 0-25 percent range, 4-20mA Output scaled based upon switch selection.) Loop powered (14-32vdc - provided by user). Features a standard enclosure. Includes standard connectors on the sample outlet; no filter; a pressure regulator (max 100 psi) with a stainless-steel needle valve with 1/4" compression fitting on the sample inlet; a flowmeter without a control valve on the sample outlet; a flowmeter without a control valve on the sample outlet. Also includes a 4-20mADC analog output. Warranty: 2-year electronics and 1-year sensor. Pressure Regulator Application: |
|
2500 Loop powered, 0-100%, flowmeter, regulator |
Series 2500 Loop Powered Percent Oxygen Transmitter. "F" 0-10/100.0 Percent Switch Selectable Range (Calibrated and shipped on the 0-100 percent range, 4-20mA Output scaled based upon switch selection.) Loop powered (14-32vdc - provided by user). Features a standard enclosure. Includes standard connectors on the sample outlet; no filter; a pressure regulator (max 100 psi) with a stainless-steel needle valve with 1/4" compression fitting on the sample inlet; a flowmeter without a control valve on the sample outlet; a flowmeter without a control valve on the sample outlet. Also includes a 4-20mADC analog output. Warranty: 2-year electronics and 1-year sensor. Pressure Regulator Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 1.5 to 100 psig, flowrate 0.5 to 1.5 LPM. |
