Series 2520 Percent Oxygen Analyzer
Series 2520 Percent Oxygen Analyzer

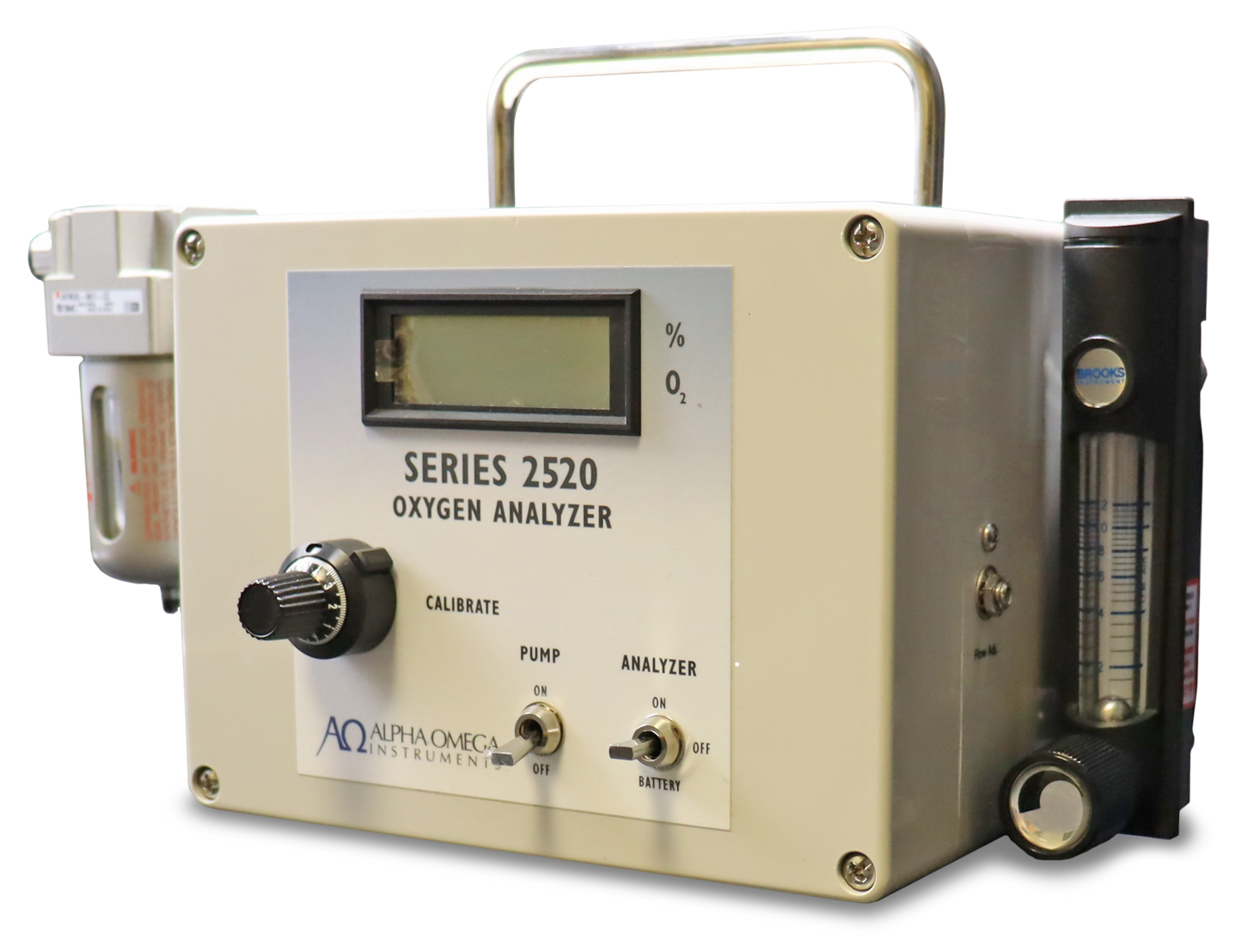

Our ALPHA OMEGA INSTRUMENTS™ Series 2520™ Portable Percent Oxygen Analyzer is a battery-operated percent oxygen analyzer designed for industrial and commercial applications where accurate and reliable spot percent oxygen measurements are needed. The Series 2520 is a lightweight, easy-to-use analyzer that provides accurate and repeatable percent oxygen measurements in a variety of gases. The rugged and compact design of the Series 2520 makes it ideal for industrial applications where spot oxygen measurements need to be made.
Pricing for US, LATAM, and Canada Only.
Outside of US, LATAM, or Canada, please request a quote. sales.hou@process-insights.com
The Series 2520 percent oxygen analyzer can be configured with one of several measuring ranges from 0-1% to 0-100% oxygen. The standard Series 2520 Portable Percent Oxygen Analyzer is equipped with a 3-1/2-digit liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. It features an extended life oxygen sensor with EES (Enhanced Electrolyte System) that provides exceptional measurement accuracy and stability.
For applications where carbon dioxide is present in the sample gas, the EES retards passivation of the sensor anode by allowing the products of oxidation to dissolve in the electrolyte. In effect, the sensor is renewed continuously, resulting in an increase in sensor life. The output from the sensor is temperature compensated.
FEATURES
- A factory Certificate of Performance Verification and Calibration is included at no additional charge. The product performance is verified in accordance with manufacturing specifications using a National Institute of Standards and Technology (NIST) traceable transfer calibrated standard gas mix.
- State-of-the-Art Sensor Technology: High Precision Measurements
- Light Weight/Compact Design: Easy to Carry and Transport
- Rapid Speed of Response: Senses Oxygen Changes in Seconds
- Built-in NICAD Batteries: Provides Hours of Continuous Operation
- Uses Standard NICAD’s: Replacement Batteries Found World-Wide
- Minimum Maintenance: Low Cost of Ownership
PERFORMANCE
- Measurement Ranges: 0-5, 0-10, 0-25, 0-50, and 0-100%
- Accuracy: ±1% of full scale (± 5% of full scale on ranges ≤ 0-5%)
- Linearity: ±1% of full scale
- Response Time: 90% of full scale in <20 seconds
- Sensor Type: Electrochemical
- Temperature Compensation: Standard
- Operating Temperature Range: 40° to 104°F (5° to 40°C)
- Warranty: Two years electronics/1 year sensor
CONSTRUCTION
- Enclosure: Polycarbonate-rated NEMA 1
- Dimensions: 5.8 in. (147.3 mm) Height 6.7 in. (170.2 mm) Width 3.4 in. (86.4 mm) Depth – Note: All dimensions are without optional equipment
- Gas Connections: Quick connect
- Weight: <2 pounds (<0.907 kg)
ELECTRICAL
- Display: 3-1/2 digit liquid crystal display
- Power Source: Rechargeable NICAD batteries with universal (90-240 VAC) AC adapter
- Analog Output: Not available
SAMPLE GAS CHARACTERISTICS
- Sample Flow Rate: 1.0 to 2.0 SCFH (0.5 to 1.0 liters/minute)
- Sample Gas Pressure Limits: 0.1 to 1.5 psig (0.007 to 0.1 kg/cm2)
2520 with battery 0-5% no options |
Series 2520 Portable Percent Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. "B" 0-5 Percent (Displays 0-19.99, calibrated in the 0-5 percent range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet. No analog outputs. Warranty: 2-year electronics and 1-year sensor. No options included. No Options Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 1.5 psig, flowrate 0.5 to 1.5 LPM or customer will supply their own gas sample conditioning options. |
2520 with battery 0-5% flowmeter regulator |
Series 2520 Portable Percent Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. "B" 0-5 Percent (Displays 0-19.99, calibrated in the 0-5 percent range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet; a pressure regulator (max 100 psi) with a stainless-steel needle valve with 1/4" compression fitting on the sample inlet; a flowmeter without a control valve on the sample outlet. No analog outputs. Warranty: 2-year electronics and 1-year sensor. Pressure Regulator Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 1.5 to 100 psig, flowrate 0.5 to 1.5 LPM. |
2520 with battery 0-5% flowmeter pump |
Series 2520 Portable Percent Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. "B" 0-5 Percent (Displays 0-19.99, calibrated in the 0-5 percent range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet; a flowmeter with a control valve on the sample outlet; a 12vdc sample pump. No analog outputs. Warranty: 2-year electronics and 1-year sensor. Sample Pump Application: For extractive gas sampling venting to atmosphere with sample gas pressure at atmosphere <0.1 psig, flowrate 0.5 to 1.5 LPM. Vacuums to 12.5 psia are permissible. For In-situ glovebox and chambers (instrument or sensor in chamber) with environment between atmosphere and 1.5 psig. Vacuums to 12.5 psia are permissible. |
2520 with battery 0-25% no options |
Series 2520 Portable Percent Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. "D" 0-25 Percent (Displays 0-100.0, calibrated in the 0-25 percent range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet. No analog outputs. Warranty: 2-year electronics and 1-year sensor. No options included. No Options Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 1.5 psig, flowrate 0.5 to 1.5 LPM or customer will supply their own gas sample conditioning options. |
2520 with battery 0-25% flowmeter regulator |
Series 2520 Portable Percent Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. "D" 0-25 Percent (Displays 0-100.0, calibrated in the 0-25 percent range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet; a pressure regulator (max 100 psi) with a stainless-steel needle valve with 1/4" compression fitting on the sample inlet; a flowmeter without a control valve on the sample outlet. No analog outputs. Warranty: 2-year electronics and 1-year sensor. Pressure Regulator Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 1.5 to 100 psig, flowrate 0.5 to 1.5 LPM. |
2520 with battery 0-25% flowmeter pump |
Series 2520 Portable Percent Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. "D" 0-25 Percent (Displays 0-100.0, calibrated in the 0-25 percent range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet; a flowmeter with a control valve on the sample outlet; a 12vdc sample pump. No analog outputs. Warranty: 2-year electronics and 1-year sensor. Sample Pump Application: For extractive gas sampling venting to atmosphere with sample gas pressure at atmosphere <0.1 psig, flowrate 0.5 to 1.5 LPM. Vacuums to 12.5 psia are permissible. For In-situ glovebox and chambers (instrument or sensor in chamber) with environment between atmosphere and 1.5 psig. Vacuums to 12.5 psia are permissible. |
2520 with battery 0-100% no options |
Series 2520 Portable Percent Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. "F" 0-100 Percent (Displays 0-100.0, calibrated in the 0-100 percent range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet. No analog outputs. Warranty: 2-year electronics and 1-year sensor. No options included. No Options Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 1.5 psig, flowrate 0.5 to 1.5 LPM or customer will supply their own gas sample conditioning options. |
2520 with battery 0-100% flowmeter regulator |
Series 2520 Portable Percent Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. "F" 0-100 Percent (Displays 0-100.0, calibrated in the 0-100 percent range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet; a pressure regulator (max 100 psi) with a stainless-steel needle valve with 1/4" compression fitting on the sample inlet; a flowmeter without a control valve on the sample outlet. No analog outputs. Warranty: 2-year electronics and 1-year sensor. Pressure: Regulator Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 1.5 to 100 psig, flowrate 0.5 to 1.5 LPM. |
2520 with battery 0-100% flowmeter pump |
Series 2520 Portable Percent Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. "F" 0-100 Percent (Displays 0-100.0, calibrated in the 0-100 percent range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet; a flowmeter with a control valve on the sample outlet; a 12vdc sample pump. No analog outputs. Warranty: 2-year electronics and 1-year sensor. Sample Pump Application: For extractive gas sampling venting to atmosphere with sample gas pressure at atmosphere <0.1 psig, flowrate 0.5 to 1.5 LPM. Vacuums to 12.5 psia are permissible. For In-situ glovebox and chambers (instrument or sensor in chamber) with environment between atmosphere and 1.5 psig. Vacuums to 12.5 psia are permissible. |
