Series 3000 Trace Oxygen Analyzer
Series 3000 Trace Oxygen Analyzer
Regular price
$5,620.00 USD
Regular price
Sale price
$5,620.00 USD
Unit price
/
per
Couldn't load pickup availability

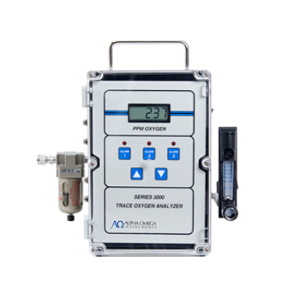

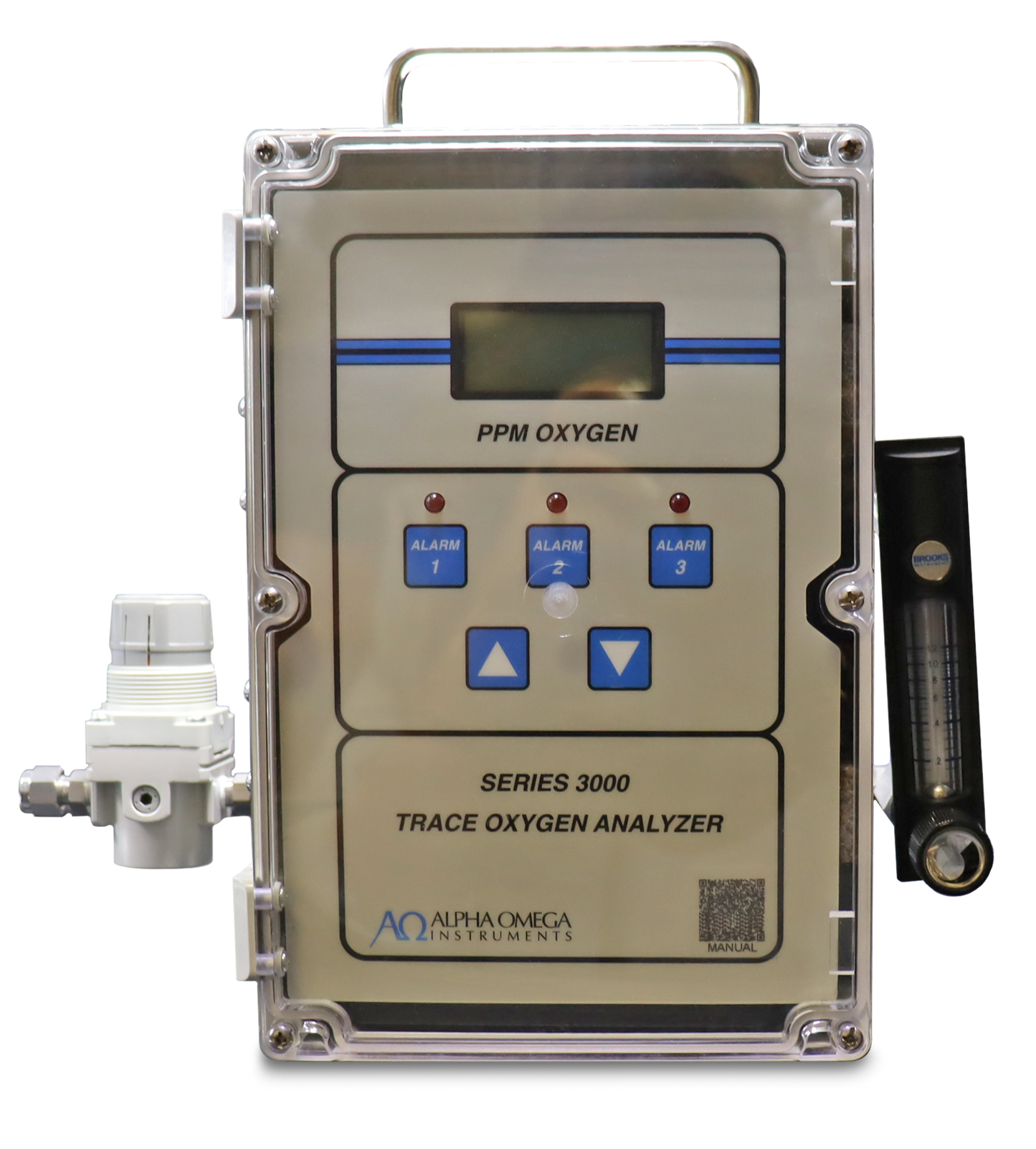

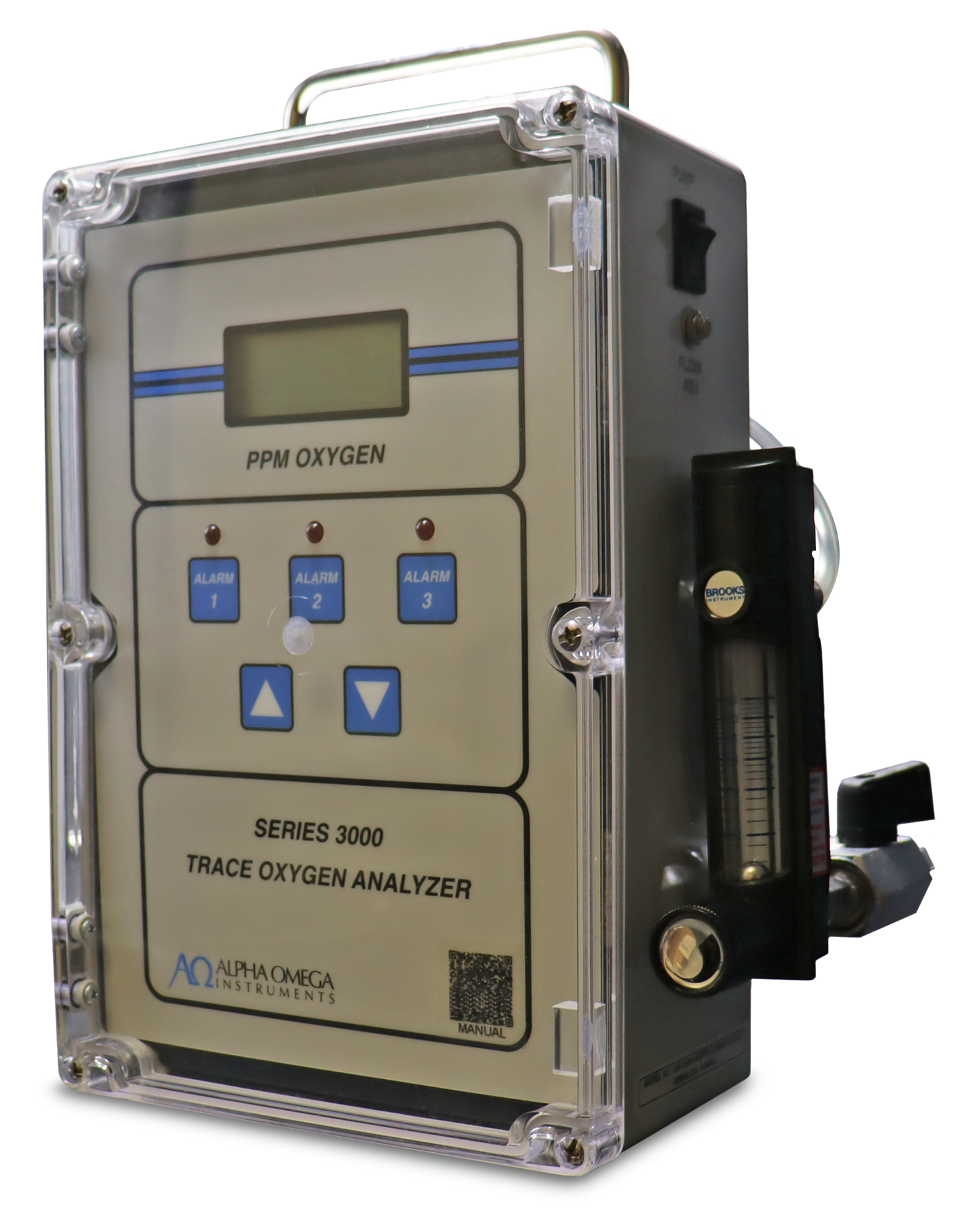

Our ALPHA OMEGA INSTRUMENTS™ Series 3000™ Trace Oxygen Analyzer is a rugged, microprocessor-controlled oxygen analyzer designed for continuous or intermittent measurement of trace oxygen concentrations. The Series 3000 Trace Oxygen Analyzer is housed in a general-purpose enclosure and is powered from either a universal 100-240 VAC, 50-60Hz, or 18-32 VDC. Trace oxygen values are displayed on a 0.4 inch (10.2 mm) high, 4-1/2-digit liquid crystal display (LCD). The Series 3000 is equipped with three oxygen alarm relays and one status alarm relay. All four relays are Form C (SPDT) types rated at 10 amps at 115/230 VAC and 30 VDC. The relays are user configurable for fail-safe operation. In addition to the four alarm contacts, the analyzer has a built-in audible alarm and three red LEDs for visual indication of an oxygen alarm condition.
The audible alarm may be manually canceled at any time. The Series 3000 provides users with two standard analog outputs, 4-20 mADC and 0-2 VDC.
If outside the US, please contact us at sales.hou@process-insights.com.
| CAT-3000-GXBTP-XX | Series 3000 Trace Oxygen Analyzer with a measuring range is "G" Auto Multi-range 0-10/100/1,000 PPM. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators, and two manual sensor isolation valves. All models are sample pump ready. - Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID). - Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable). - Features a general purpose polycarbonate benchtop portable enclosure with carry handle with sampling and electrical connections mounted on the rear of the enclosure. - Includes 1/4 inch stainless steel compression gas connection on the inlet; no flowmeter, regulator or pump options. - Equipped with our standard trace electrochemical sensor (CAT-3SEN). - Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief. - Warranty: 2-year electronics and 1-year sensor |
Series 3000 Trace Oxygen Analyzer - Range of "G" Auto Multi-range 0-10/100/1,000 PPM - Base Model. | 0-10/100/1,000 PPM | Pressure: 0.1 to 1.5 psig Flow: 1.0 to 2.0 SCFH (0.5 to 1.0 liter/min) |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3000-GXBTP-RM | Series 3000 Trace Oxygen Analyzer with a measuring range is "G" Auto Multi-range 0-10/100/1,000 PPM. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators, and two manual sensor isolation valves. All models are sample pump ready. - Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID). - Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable). - Features a general purpose polycarbonate benchtop portable enclosure with carry handle with sampling and electrical connections mounted on the rear of the enclosure. - Includes 1/4 inch stainless steel compression gas connection on the inlet, a pressure regulator (max 100 psi) with a stainless steel needle valve on the sample inlet and flowmeter without control valve with 1/4 inch quick connect fitting on the outlet. - Equipped with our standard trace electrochemical sensor (CAT-3SEN). - Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief. - Warranty: 2-year electronics and 1-year sensor |
Series 3000 Trace Oxygen Analyzer - Range of "G" Auto Multi-range 0-10/100/1,000 PPM - Pressure Regulator Model. | 0-10/100/1,000 PPM | Pressure: 1.5 psig to 100 psig |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3000-GXBTP-VA | Series 3000 Trace Oxygen Analyzer with a measuring range is "G" Auto Multi-range 0-10/100/1,000 PPM. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators, and two manual sensor isolation valves. All models are sample pump ready. - Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID). - Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable). - Features a general purpose polycarbonate benchtop portable enclosure with carry handle with sampling and electrical connections mounted on the rear of the enclosure. - Includes 1/4 inch stainless steel compression gas connection on the inlet, a 24vdc sample pump with barbed fittings and flowmeter with control valve with 1/4 inch quick connect fitting on the outlet. - Equipped with our standard trace electrochemical sensor (CAT-3SEN). - Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief. - Warranty: 2-year electronics and 1-year sensor |
Series 3000 Trace Oxygen Analyzer - Range of "G" Auto Multi-range 0-10/100/1,000 PPM - Pump Model. | 0-10/100/1,000 PPM | Pressure: Atmospheric down to -1.7 psig | CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3000-FXBTP-XX | Series 3000 Trace Oxygen Analyzer with a measuring range is "F" Auto Multi-range 0-50/500/5,000 PPM. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators, and two manual sensor isolation valves. All models are sample pump ready. - Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID). - Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable). - Features a general purpose polycarbonate benchtop portable enclosure with carry handle with sampling and electrical connections mounted on the rear of the enclosure. - Includes 1/4 inch stainless steel compression gas connection on the inlet; no flowmeter, regulator or pump options. - Equipped with our standard trace electrochemical sensor (CAT-3SEN). - Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief. - Warranty: 2-year electronics and 1-year sensor |
Series 3000 Trace Oxygen Analyzer - Range of "F" Auto Multi-range 0-50/500/5,000 PPM - Base Model. | 0-50/500/5,000 PPM | Pressure: 0.1 to 1.5 psig Flow: 1.0 to 2.0 SCFH (0.5 to 1.0 liter/min) |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3000-FXBTP-RM | Series 3000 Trace Oxygen Analyzer with a measuring range is "F" Auto Multi-range 0-50/500/5,000 PPM. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators, and two manual sensor isolation valves. All models are sample pump ready. - Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID). - Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable). - Features a general purpose polycarbonate benchtop portable enclosure with carry handle with sampling and electrical connections mounted on the rear of the enclosure. - Includes 1/4 inch stainless steel compression gas connection on the inlet, a pressure regulator (max 100 psi) with a stainless steel needle valve on the sample inlet and flowmeter without control valve with 1/4 inch quick connect fitting on the outlet. - Equipped with our standard trace electrochemical sensor (CAT-3SEN). - Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief. - Warranty: 2-year electronics and 1-year sensor |
Series 3000 Trace Oxygen Analyzer - Range of "F" Auto Multi-range 0-50/500/5,000 PPM - Pressure Regulator Model. | 0-50/500/5,000 PPM | Pressure: 1.5 psig to 100 psig |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3000-FXBTP-VA | Series 3000 Trace Oxygen Analyzer with a measuring range is "F" Auto Multi-range 0-50/500/5,000 PPM. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators, and two manual sensor isolation valves. All models are sample pump ready. - Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID). - Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable). - Features a general purpose polycarbonate benchtop portable enclosure with carry handle with sampling and electrical connections mounted on the rear of the enclosure. - Includes 1/4 inch stainless steel compression gas connection on the inlet, a 24vdc sample pump with barbed fittings and flowmeter with control valve with 1/4 inch quick connect fitting on the outlet. - Equipped with our standard trace electrochemical sensor (CAT-3SEN). - Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief. - Warranty: 2-year electronics and 1-year sensor |
Series 3000 Trace Oxygen Analyzer - Range of "F" Auto Multi-range 0-50/500/5,000 PPM - Pump Model. | 0-50/500/5,000 PPM | Pressure: Atmospheric down to -1.7 psig | CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3000-YXBTP-XX | Series 3000 Trace Oxygen Analyzer with a measuring range is "Y" Auto Multi-range 0-100/1000/10,000 PPM. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators, and two manual sensor isolation valves. All models are sample pump ready. - Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID). - Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable). - Features a general purpose polycarbonate benchtop portable enclosure with carry handle with sampling and electrical connections mounted on the rear of the enclosure. - Includes 1/4 inch stainless steel compression gas connection on the inlet; no flowmeter, regulator or pump options. - Equipped with our standard trace electrochemical sensor (CAT-3SEN). - Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief. - Warranty: 2-year electronics and 1-year sensor |
Series 3000 Trace Oxygen Analyzer - Range of "Y" Auto Multi-range 0-100/1000/10,000 PPM - Base Model. | 0-100/1000/10,000 PPM | Pressure: 0.1 to 1.5 psig Flow: 1.0 to 2.0 SCFH (0.5 to 1.0 liter/min) |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3000-YXBTP-RM | Series 3000 Trace Oxygen Analyzer with a measuring range is "Y" Auto Multi-range 0-100/1000/10,000 PPM. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators, and two manual sensor isolation valves. All models are sample pump ready. - Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID). - Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable). - Features a general purpose polycarbonate benchtop portable enclosure with carry handle with sampling and electrical connections mounted on the rear of the enclosure. - Includes 1/4 inch stainless steel compression gas connection on the inlet, a pressure regulator (max 100 psi) with a stainless steel needle valve on the sample inlet and flowmeter without control valve with 1/4 inch quick connect fitting on the outlet. - Equipped with our standard trace electrochemical sensor (CAT-3SEN). - Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief. - Warranty: 2-year electronics and 1-year sensor |
Series 3000 Trace Oxygen Analyzer - Range of "Y" Auto Multi-range 0-100/1000/10,000 PPM - Pressure Regulator Model. | 0-100/1000/10,000 PPM | Pressure: 1.5 psig to 100 psig |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3000-YXBTP-VA | Series 3000 Trace Oxygen Analyzer with a measuring range is "Y" Auto Multi-range 0-100/1000/10,000 PPM. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators, and two manual sensor isolation valves. All models are sample pump ready. - Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID). - Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable). - Features a general purpose polycarbonate benchtop portable enclosure with carry handle with sampling and electrical connections mounted on the rear of the enclosure. - Includes 1/4 inch stainless steel compression gas connection on the inlet, a 24vdc sample pump with barbed fittings and flowmeter with control valve with 1/4 inch quick connect fitting on the outlet. - Equipped with our standard trace electrochemical sensor (CAT-3SEN). - Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief. - Warranty: 2-year electronics and 1-year sensor |
Series 3000 Trace Oxygen Analyzer - Range of "Y" Auto Multi-range 0-100/1000/10,000 PPM - Pump Model. | 0-100/1000/10,000 PPM | Pressure: Atmospheric down to -1.7 psig | CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3000-HXBTP-XX | Series 3000 Trace Oxygen Analyzer with a measuring range is "H" Auto Multi-range 0-5/50/500 PPM. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators, and two manual sensor isolation valves. All models are sample pump ready. - Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID). - Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable). - Features a general purpose polycarbonate benchtop portable enclosure with carry handle with sampling and electrical connections mounted on the rear of the enclosure. - Includes 1/4 inch stainless steel compression gas connection on the inlet; no flowmeter, regulator or pump options. - Equipped with our standard trace electrochemical sensor (CAT-3SEN). - Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief. - Warranty: 2-year electronics and 1-year sensor |
Series 3000 Trace Oxygen Analyzer - Range of "H" Auto Multi-range 0-5/50/500 PPM - Base Model. | 0-5/50/500 PPM | Pressure: 0.1 to 1.5 psig Flow: 1.0 to 2.0 SCFH (0.5 to 1.0 liter/min) |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3000-HXBTP-RM | Series 3000 Trace Oxygen Analyzer with a measuring range is "H" Auto Multi-range 0-5/50/500 PPM. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators, and two manual sensor isolation valves. All models are sample pump ready. - Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID). - Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable). - Features a general purpose polycarbonate benchtop portable enclosure with carry handle with sampling and electrical connections mounted on the rear of the enclosure. - Includes 1/4 inch stainless steel compression gas connection on the inlet, a pressure regulator (max 100 psi) with a stainless steel needle valve on the sample inlet and flowmeter without control valve with 1/4 inch quick connect fitting on the outlet. - Equipped with our standard trace electrochemical sensor (CAT-3SEN). - Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief. - Warranty: 2-year electronics and 1-year sensor |
Series 3000 Trace Oxygen Analyzer - Range of "H" Auto Multi-range 0-5/50/500 PPM - Pressure Regulator Model. | 0-5/50/500 PPM | Pressure: 1.5 psig to 100 psig |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3000-HXBTP-VA | Series 3000 Trace Oxygen Analyzer with a measuring range is "H" Auto Multi-range 0-5/50/500 PPM. Includes three alarm relays, instrument status alarm relay, digital display, audible alarm, visual alarm indicators, and two manual sensor isolation valves. All models are sample pump ready. - Powered by a universal (90 ~ 264 VAC) AC/DC wall mount adapter (24V 15W external power adapter with cord) with barrel connector jack (2.10mm ID). - Includes strain relief and internal terminal block for direct 24vdc power connection (where applicable). - Features a general purpose polycarbonate benchtop portable enclosure with carry handle with sampling and electrical connections mounted on the rear of the enclosure. - Includes 1/4 inch stainless steel compression gas connection on the inlet, a 24vdc sample pump with barbed fittings and flowmeter with control valve with 1/4 inch quick connect fitting on the outlet. - Equipped with our standard trace electrochemical sensor (CAT-3SEN). - Comes with both a 4-20mADC and 0-2vdc analog outputs includes cordgrip strain relief. - Warranty: 2-year electronics and 1-year sensor |
Series 3000 Trace Oxygen Analyzer - Range of "H" Auto Multi-range 0-5/50/500 PPM - Pump Model. | 0-5/50/500 PPM | Pressure: Atmospheric down to -1.7 psig | CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
