Series 3500 Loop Powered Trace Oxygen Transmitters
Series 3500 Loop Powered Trace Oxygen Transmitters
Regular price
$3,788.00 USD
Regular price
Sale price
$3,788.00 USD
Unit price
/
per
Couldn't load pickup availability
Our ALPHA OMEGA INSTRUMENTS™ Series 3500 Loop Powered Trace Oxygen Transmitters are designed to provide exceptional performance, accuracy, and stability. The Series 3500/3510™ Trace Oxygen Transmitter is designed to provide accurate and dependable trace oxygen measurements in a variety of background gases. Measurement ranges available are from 0-500, 0-1000, and 0-5000 ppm.
If outside the US, please contact us at sales.hou@process-insights.com.

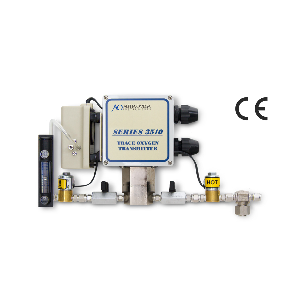

The Series 3500 Loop Powered Trace Oxygen Transmitters enclosure is made from durable polycarbonate and is rated for NEMA 4 (IP 66) service (may change with the addition of certain optional equipment). A 4-20 mADC output is provided that can be used with a data logger, recorder, PLC, DCS, etc. Options include pressure regulators, flow meters, sample filters. The Series 3500 is the loop powered version, and the Series 3510 is the AC powered (115 VAC, 50-60 Hz) counterpart and is recommended when AC power is available or preferred. Also, available in optional 24 VDC. In addition to the optional equipment mentioned above, the Series 3510 can be equipped with a sample pump.
| CAT-3500-FLSTD-XX | Series 3500 Loop Powered Trace Oxygen Transmitter is equipped with two manual sensor isolation valves and no display. Measuring range is "F" 0-5,000 PPM. Includes a cord grip strain relief and internal terminal block for power connection. Loop powered (14-32vdc - provided by user). Features a standard polycarbonate (NEMA 4 without options) enclosure with sampling and electrical connections mounted on the bottom and sides. Includes 1/4 inch stainless steel compression gas connection on the inlet, no pressure regulator or flowmeter. Equipped with our standard trace electrochemical sensor (CAT-3SEN). Comes with a 4-20mADC analog output includes cordgrip strain relief. Warranty: 2-year electronics and 1-year sensor – CE Certified | Series 3500 Loop Powered Trace Oxygen Transmiiter - Range of "F" 0-5,000 PPM - Base Model. | 0-5,000 PPM | Pressure: 0.1 to 1.5 psig Flow: 1.0 to 2.0 SCFH (0.5 to 1.0 liter/min) |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3500-FLSTD-RM | Series 3500 Loop Powered Trace Oxygen Transmitter is equipped with two manual sensor isolation valves and no display. Measuring range is "F" 0-5,000 PPM. Includes a cord grip strain relief and internal terminal block for power connection. Loop powered (14-32vdc - provided by user). Features a standard polycarbonate (NEMA 4 without options) enclosure with sampling and electrical connections mounted on the bottom and sides. Includes 1/4 inch stainless steel compression gas connection on the inlet, a pressure regulator (max 100 psi) with a stainless steel needle valve on the sample inlet and flowmeter with no control valve with 1/4 inch quick connect fitting on the outlet. Equipped with our standard trace electrochemical sensor (CAT-3SEN). Comes with a 4-20mADC analog output includes cordgrip strain relief. Warranty: 2-year electronics and 1-year sensor – CE Certified | Series 3500 Loop Powered Trace Oxygen Transmiiter - Range of "F" 0-5,000 PPM - Pressure Regulator Model. | 0-5,000 PPM | Pressure: 1.5 psig to 100 psig |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3500-ELSTD-XX | Series 3500 Loop Powered Trace Oxygen Transmitter is equipped with two manual sensor isolation valves and no display. Measuring range is "E" 0-1,000 PPM. Includes a cord grip strain relief and internal terminal block for power connection. Loop powered (14-32vdc - provided by user). Features a standard polycarbonate (NEMA 4 without options) enclosure with sampling and electrical connections mounted on the bottom and sides. Includes 1/4 inch stainless steel compression gas connection on the inlet, no pressure regulator or flowmeter. Equipped with our standard trace electrochemical sensor (CAT-3SEN). Comes with a 4-20mADC analog output includes cordgrip strain relief. Warranty: 2-year electronics and 1-year sensor – CE Certified | Series 3500 Loop Powered Trace Oxygen Transmiiter - Range of "E" 0-1,000 PPM - Base Model. | 0-1,000 PPM | Pressure: 0.1 to 1.5 psig Flow: 1.0 to 2.0 SCFH (0.5 to 1.0 liter/min) |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3500-ELSTD-RM | Series 3500 Loop Powered Trace Oxygen Transmitter is equipped with two manual sensor isolation valves and no display. Measuring range is "E" 0-1,000 PPM. Includes a cord grip strain relief and internal terminal block for power connection. Loop powered (14-32vdc - provided by user). Features a standard polycarbonate (NEMA 4 without options) enclosure with sampling and electrical connections mounted on the bottom and sides. Includes 1/4 inch stainless steel compression gas connection on the inlet, a pressure regulator (max 100 psi) with a stainless steel needle valve on the sample inlet and flowmeter with no control valve with 1/4 inch quick connect fitting on the outlet. Equipped with our standard trace electrochemical sensor (CAT-3SEN). Comes with a 4-20mADC analog output includes cordgrip strain relief. Warranty: 2-year electronics and 1-year sensor – CE Certified | Series 3500 Loop Powered Trace Oxygen Transmiiter - Range of"E" 0-1,000 PPM - Pressure Regulator Model. | 0-1,000 PPM | Pressure: 1.5 psig to 100 psig |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3500-DLSTD-XX | Series 3500 Loop Powered Trace Oxygen Transmitter is equipped with two manual sensor isolation valves and no display. Measuring range is "D" 0-500 PPM. Includes a cord grip strain relief and internal terminal block for power connection. Loop powered (14-32vdc - provided by user). Features a standard polycarbonate (NEMA 4 without options) enclosure with sampling and electrical connections mounted on the bottom and sides. Includes 1/4 inch stainless steel compression gas connection on the inlet, no pressure regulator or flowmeter. Equipped with our standard trace electrochemical sensor (CAT-3SEN). Comes with a 4-20mADC analog output includes cordgrip strain relief. Warranty: 2-year electronics and 1-year sensor – CE Certified | Series 3500 Loop Powered Trace Oxygen Transmiiter - Range of "D" 0-500 PPM - Base Model. | 0-500 PPM | Pressure: 0.1 to 1.5 psig Flow: 1.0 to 2.0 SCFH (0.5 to 1.0 liter/min) |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
| CAT-3500-DLSTD-RM | Series 3500 Loop Powered Trace Oxygen Transmitter is equipped with two manual sensor isolation valves and no display. Measuring range is "D" 0-500 PPM. Includes a cord grip strain relief and internal terminal block for power connection. Loop powered (14-32vdc - provided by user). Features a standard polycarbonate (NEMA 4 without options) enclosure with sampling and electrical connections mounted on the bottom and sides. Includes 1/4 inch stainless steel compression gas connection on the inlet, a pressure regulator (max 100 psi) with a stainless steel needle valve on the sample inlet and flowmeter with no control valve with 1/4 inch quick connect fitting on the outlet. Equipped with our standard trace electrochemical sensor (CAT-3SEN). Comes with a 4-20mADC analog output includes cordgrip strain relief. Warranty: 2-year electronics and 1-year sensor – CE Certified | Series 3500 Loop Powered Trace Oxygen Transmiiter - Range of "D" 0-500 PPM - Pressure Regulator Model. | 0-500 PPM | Pressure: 1.5 psig to 100 psig |
CAT-SS-4TF-2 - Particulate Filter CAT-AFM20 - Coalescing Filter |
