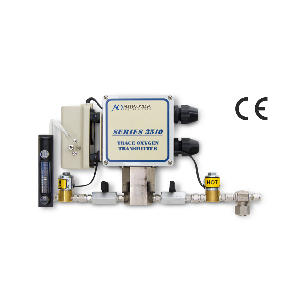

Series 3510 Trace Oxygen Transmitter

Series 3510 Trace Oxygen Transmitter

Regular price $3,604.00 USD
Regular price Sale price $3,604.00 USD
Sale Sold out
Size

Our ALPHA OMEGA INSTRUMENTS™ Series 3500/3510™ Trace Oxygen Transmitters are designed to provide exceptional performance, accuracy, and stability.  The Series 3500/3510™ Trace Oxygen Transmitter is designed to provide accurate and dependable trace oxygen measurements in a variety of background gases.  Measurement ranges available are from 0-10 PPM to 0-20,000 PPM.

Pricing for US, LATAM, and Canada Only.

Outside of US, LATAM, or Canada, please request a quote. sales.hou@process-insights.com

The Series 3500/3510 Trace Oxygen Transmitter enclosure is made from durable polycarbonate and is rated for NEMA 4 (IP 66) service (may change with the addition of certain optional equipment). A 4-20 mADC output is provided that can be used with a data logger, recorder, PLC, DCS, etc. Options include pressure regulators, flow meters, sample filters.  The Series 3500 is the loop powered version, and the Series 3510 is the AC powered (115/230 VAC, 50-60 Hz) counterpart and is recommended when AC power is available or preferred. Also, available in optional 24 VDC. In addition to the optional equipment mentioned above, the Series 3510 can be equipped with a sample pump and solenoids valves that can be used for quick gas changes.

DOWNLOAD DATASHEET

NEW - CO2 RESISTANT SENSOR

We offer an optional CO2 tolerant trace oxygen sensor with proprietary electrolyte. The CO2 tolerant sensor is capable of providing accurate oxygen readings in gases containing up to 100% CO2 without shortening the life of the sensor.

FEATURES

  • Long Life Trace Oxygen Sensor: Provides up to three times the functional life of most “fuel cell” type sensors. Reliability is dramatically increased while maintenance costs are reduced.
  •  Sealed Sensor: Eliminates handling potassium hydroxide (caustic), a hazardous material or having to frequently “recharge” the electrolyte.
  •  CO2 Resistant Sensor: Optional CO2 resistant sensor is designed to operate with sample gases containing up to 100% CO2. Conventional “fuel cell” type sensors using potassium hydroxide (KOH) electrolyte can be poisoned from CO2.
  •  Affordable: Affords savings of up to 30% and more over other manufacturers trace oxygen transmitters.
  •  Wide Measurement Range: Measure from under 1 PPM to as high as 20,000 PPM oxygen.
  •  Factory Calibration: A factory Certificate of Performance Verification and Calibration is included at no additional charge. The product performance is verified in accordance with manufacturing specifications using a National Institute of Standards and Technology (NIST) traceable transfer calibrated standard gas mix.
  •  NEMA 4 Enclosure: Greater installation flexibility with a dust and waterproof enclosure (may change with the addition of certain optional equipment).

PERFORMANCE

  • Measurement Ranges: (parts per million) 0-10, 0-50, 0-100, 0-500, 0-1,000, 0-5,000, 0-10,000, and 0-20,000
  • Accuracy¹: ±1% of full scale (± 5% of full scale on ranges ≤ 0-5ppm)
  • ¹Stated at constant temperature and pressure
  • Linearity: + 1% of full scale.
  • Response Time: 90% of full-scale response in less than 10 seconds (typical). The response time for ranges of 0-50 PPM or less depend to a great extent on the design of the sample delivery system including the materials used.
  • Sensor Type: Long-life Ambient Temperature Electrochemical Sensor (Optional CO2 Resistant Sensor Available)
  • Temperature Compensation: Standard
  • Operating Temperature Range: 40° to 104° F (5° to 40° C) <40° F (<5° C) use heated sensor enclosure >104° F (>40° C) cooling of sample gas/sensor required
  • Warranty: Two years electronics, one year sensor

CONSTRUCTION

  • Polycarbonate, rated NEMA 4X (IP66) without optional equipment. (Optional NEMA7 explosion-proof enclosure available)
  • Dimensions: 5.5 in (139.9 mm) height. 8.8 in (223.5 mm) width. 3.4 in (86.4 mm) deep. Note: All dimensions are without optional equipment
  • Gas Connections: 1/4” stainless steel compression fittings

ELECTRICAL

  • Series 3500 Loop Powered Trace Oxygen Transmitter: Input power 14-32 VDC
  • Analog Output: 4-20 mADC with a loop resistance of 600 ohms @ 24 VDC (consult factory for other resistance values)
  • SAMPLE GAS CHARACTERISTICS
  • Sample Flow Rate: 1.0 to 2.0 standard cubic feet per hour (SCFH). 0.5 to 1.0 liters/ minute (LPM)
  • Sample Gas Temperature: 40° to 104° F (5° to 40° C)
  • Sample Gas Pressure Limits: 0.1 to 1.5 psig (0.007 to 0.1 kg/cm2)
  • Entrained Solids: <3 mg/ft³: no in-line filter required >3 mg/ft³: in-line filter is required
  • Hydrocarbon Mist: <0.7 mg/ft³: no in-line filter required >0.7 mg/ft³: in-line filter is required

    3510 with 115VAC 0-500 PPM no options

    Series 3510 Trace Oxygen Transmitter is equipped with two manual sensor isolation valves. "D" 0-500 PPM. Powered by 115VAC. Features a standard NEMA 4 (without options) enclosure. Includes standard connectors on the sample outlet. Also includes a 4-20mADC analog output.

    Warranty: 2-year electronics and 1-year sensor – CE Certification (for non-NEMA 7)

    No options included.

    No Options Application:  For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 1.5 psig, flowrate 0.5 to 1.5 LPM or customer will supply their own gas sample conditioning options.

    3510 with 115VAC 0-500 PPM flowmeter regulator

    Series 3510 Trace Oxygen Transmitter is equipped with two manual sensor isolation valves. "D" 0-500 PPM. Powered by 115VAC. Features a standard NEMA 4 (without options) enclosure. Includes standard connectors on the sample outlet; a pressure regulator (max 100 psi) with a stainless steel needle valve with 1/4" compression fitting on the sample inlet; a flowmeter without a control valve on the sample outlet. Also includes a 4-20mADC analog output.

    Warranty: 2-year electronics and 1-year sensor – CE Certification (for non-NEMA 7)

    No options included.

    Pressure Regulator Application:  For extractive gas sampling venting to atmosphere with sample gas pressure between 1.5 to 100 psig, flowrate 0.5 to 1.5 LPM.

    3510 with 115VAC 0-500 PPM flowmeter pump

    Series 3510 Trace Oxygen Transmitter is equipped with two manual sensor isolation valves. "D" 0-500 PPM. Powered by 115VAC. Features a standard NEMA 4 (without options) enclosure. Includes standard connectors on the sample outlet; a flowmeter with a control valve on the sample outlet; 115vac sample pump. Also includes a 4-20mADC analog output.

    Warranty: 2-year electronics and 1-year sensor – CE Certification (for non-NEMA 7)

    Sample Pump Application:  For extractive gas sampling venting to atmosphere with sample gas pressure at atmosphere <0.1 psig, flowrate 0.5 to 1.5 LPM. Vacuums to 12.5 psia are permissible. For In-situ glovebox and chambers (instrument or sensor in chamber) with environment between atmosphere and 1.5 psig. Vacuums to 12.5 psia are permissible.

    3510 with 115VAC 0-1000 PPM no options

    Series 3510 Trace Oxygen Transmitter is equipped with two manual sensor isolation valves. "E" 0-1,000 PPM. Powered by 115VAC. Features a standard NEMA 4 (without options) enclosure. Includes standard connectors on the sample outlet. Also includes a 4-20mADC analog output.

    Warranty: 2-year electronics and 1-year sensor – CE Certification (for non-NEMA 7)

    No options included.

    No Options Application:  For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 1.5 psig, flowrate 0.5 to 1.5 LPM or customer will supply their own gas sample conditioning options.

    3510 with 115VAC 0-1000 PPM flowmeter regulator

    Series 3510 Trace Oxygen Transmitter is equipped with two manual sensor isolation valves. "E" 0-1,000 PPM. Powered by 115VAC. Features a standard NEMA 4 (without options) enclosure. Includes standard connectors on the sample outlet; a pressure regulator (max 100 psi) with a stainless-steel needle valve with 1/4" compression fitting on the sample inlet; a flowmeter without a control valve on the sample outlet. Also includes a 4-20mADC analog output.

    Warranty: 2-year electronics and 1-year sensor – CE Certification (for non-NEMA 7)

    Pressure Regulator Application:  For extractive gas sampling venting to atmosphere with sample gas pressure between 1.5 to 100 psig, flowrate 0.5 to 1.5 LPM.

    3510 with 115VAC 0-1000 PPM flowmeter pump

    Series 3510 Trace Oxygen Transmitter is equipped with two manual sensor isolation valves. "E" 0-1,000 PPM. Powered by 115VAC. Features a standard NEMA 4 (without options) enclosure. Includes standard connectors on the sample outlet; a flowmeter with a control valve on the sample outlet; 115vac sample pump. Also includes a 4-20mADC analog output.

    Warranty: 2-year electronics and 1-year sensor – CE Certification (for non-NEMA 7)

    Sample Pump Application:  For extractive gas sampling venting to atmosphere with sample gas pressure at atmosphere <0.1 psig, flowrate 0.5 to 1.5 LPM. Vacuums to 12.5 psia are permissible.  For In-situ glovebox and chambers (instrument or sensor in chamber) with environment between atmosphere and 1.5 psig. Vacuums to 12.5 psia are permissible.

    3510 with 115VAC 0-19999 PPM no options

    Series 3510 Trace Oxygen Transmitter is equipped with two manual sensor isolation valves. "H" 0-19,999 PPM. Powered by 115VAC. Features a standard NEMA 4 (without options) enclosure. Includes standard connectors on the sample outlet. Also includes a 4-20mADC analog output.

    Warranty: 2-year electronics and 1-year sensor – CE Certification (for non-NEMA 7)

    No options included.

    No Options Application:  For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 1.5 psig, flowrate 0.5 to 1.5 LPM or customer will supply their own gas sample conditioning options.

    3510 with 115VAC 0-19999 PPM flowmeter regulator

    Series 3510 Trace Oxygen Transmitter is equipped with two manual sensor isolation valves. "H" 0-19,999 PPM. Powered by 115VAC. Features a standard NEMA 4 (without options) enclosure. Includes standard connectors on the sample outlet; a pressure regulator (max 100 psi) with a stainless-steel needle valve with 1/4" compression fitting on the sample inlet; a flowmeter without a control valve on the sample outlet. Also includes a 4-20mADC analog output.

    Warranty: 2-year electronics and 1-year sensor – CE Certification (for non-NEMA 7)

    Pressure Regulator Application:  For extractive gas sampling venting to atmosphere with sample gas pressure between 1.5 to 100 psig, flowrate 0.5 to 1.5 LPM.

    3510 with 115VAC 0-19999 PPM flowmeter pump

    Series 3510 Trace Oxygen Transmitter is equipped with two manual sensor isolation valves. "H" 0-19,999 PPM. Powered by 115VAC. Features a standard NEMA 4 (without options) enclosure. Includes standard connectors on the sample outlet; a flowmeter with a control valve on the sample outlet; 115vac sample pump. Also includes a 4-20mADC analog output.

    Warranty: 2-year electronics and 1-year sensor – CE Certification (for non-NEMA 7)

    Sample Pump Application:  For extractive gas sampling venting to atmosphere with sample gas pressure at atmosphere <0.1 psig, flowrate 0.5 to 1.5 LPM. Vacuums to 12.5 psia are permissible.  For In-situ glovebox and chambers (instrument or sensor in chamber) with environment between atmosphere and 1.5 psig. Vacuums to 12.5 psia are permissible.

    3510 with 115VAC 0-500 PPM flowmeter pump solenoids filter

    Series 3510 Trace Oxygen Transmitter is equipped with two manual sensor isolation valves. "D" 0-500 PPM. Powered by 115VAC. Features a standard NEMA 4 (without options) enclosure. Includes standard connectors on the sample outlet; a high capacity particulate filter with 1/4" compression fittings on the sample inlet; a flowmeter with a control valve on the sample outlet; 115vac sample pump; two 115VAC solenoid valves for quick gas exchanges; larger conduit strain reliefs 3/8" TPS style. Also includes a 4-20mADC analog output.

    Warranty: 2-year electronics and 1-year sensor – CE Certification (for non-NEMA 7)

    Sample Pump Application:  For extractive gas sampling venting to atmosphere with sample gas pressure at atmosphere <0.1 psig, flowrate 0.5 to 1.5 LPM. Vacuums to 12.5 psia are permissible. For In-situ glovebox and chambers (instrument or sensor in chamber) with environment between atmosphere and 1.5 psig. Vacuums to 12.5 psia are permissible.

    3510 with 115VAC 0-1000 PPM flowmeter pump solenoids filter

    Series 3510 Trace Oxygen Transmitter is equipped with two manual sensor isolation valves. "E" 0-1,000 PPM. Powered by 115VAC. Features a standard NEMA 4 (without options) enclosure. Includes standard connectors on the sample outlet; a high capacity particulate filter with 1/4" compression fittings on the sample inlet; a flowmeter with a control valve on the sample outlet; 115vac sample pump; two 115VAC solenoid valves for quick gas exchanges; larger conduit strain reliefs 3/8" TPS style. Also includes a 4-20mADC analog output.

    Warranty: 2-year electronics and 1-year sensor – CE Certification (for non-NEMA 7)

    Sample Pump Application:  For extractive gas sampling venting to atmosphere with sample gas pressure at atmosphere <0.1 psig, flowrate 0.5 to 1.5 LPM. Vacuums to 12.5 psia are permissible. For In-situ glovebox and chambers (instrument or sensor in chamber) with environment between atmosphere and 1.5 psig. Vacuums to 12.5 psia are permissible.



    View full details
