Series 3520 Percent Oxygen Analyzer

Name: Series 3520 Percent Oxygen Analyzer
Brand: AOI | Process Insights
SKU: CAT-3520-EUSTD-XXXXXXX-XX-X
Price: 4256.0 USD
Availability: InStock

$4,256.00 USD

Sale Sold out

Size 3520 with battery 0-1000 PPM no options 3520 with battery 0-10000 PPM no options 3520 with battery 0-100 PPM no options 3520 with battery 0-1000 PPM flowmeter regulator 3520 with battery 0-1000 PPM flowmeter pump 3520 with battery 0-10000 PPM flowmeter regulator 3520 with battery 0-10000 PPM flowmeter pump 3520 with battery 0-100 PPM flowmeter regulator 3520 with battery 0-100 PPM flowmeter pump

Product variants

Quantity

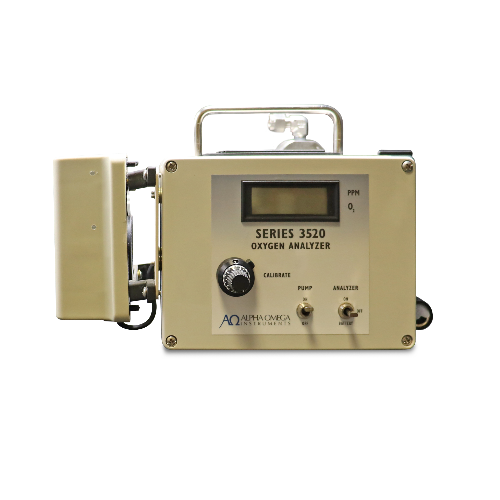

Our ALPHA OMEGA INSTRUMENTS™ Series 3520™ Portable Trace Oxygen Analyzer is battery-operated and designed for industrial and commercial applications where accurate and reliable spot trace oxygen measurements are needed. The Series 3520 Portable Trace Oxygen Analyzer features long life ambient temperature electrochemical sensor. The enclosure is made from durable polycarbonate and is rated NEMA 1 for general purpose service. The instrument is powered from rechargeable NICAD batteries that are mounted internal to the analyzer.

Pricing for US, LATAM, and Canada Only.

Outside of US, LATAM, or Canada, please request a quote. sales.hou@process-insights.com

Recharging of the batteries is accomplished using a built-in battery charger with a universal AC adapter. Single measurement ranges are available from 0-10 PPM to 0-20,000 PPM with values displayed on a front panel liquid crystal display (LCD). Options include pressure regulators, flow meters, in-line filters, pumps, and block & bleed bypass sampling systems.

DOWNLOAD DATASHEET

NEW - CO2 RESISTANT SENSOR

We offer an optional CO2 tolerant trace oxygen sensor with proprietary electrolyte. The CO2 tolerant sensor is capable of providing accurate oxygen readings in gases containing up to 100% CO2 without shortening the life of the sensor.

FEATURES

Long Life Trace Oxygen Sensor: Provides up to three times the functional life of most “fuel cell” type sensors. Reliability is dramatically increased while maintenance costs are reduced.
Sealed Sensor: Eliminates handling potassium hydroxide (caustic), a hazardous material or having to frequently “recharge” the electrolyte.
CO2 Resistant Sensor: Optional CO2 resistant sensor is designed to operate with sample gases containing up to 100% CO2. Conventional “fuel cell” type sensors using potassium hydroxide (KOH) electrolyte can be poisoned from CO2.
Affordable: Affords savings of up to 30% and more over other manufacturers trace oxygen transmitters.
Wide Measurement Range: Measure from under 1 PPM to as high as 20,000 PPM oxygen.
Factory Calibration: A factory Certificate of Performance Verification and Calibration is included at no additional charge. The product performance is verified in accordance with manufacturing specifications using a National Institute of Standards and Technology (NIST) traceable transfer calibrated standard gas mix.
NEMA 4 Enclosure Greater installation flexibility with a dust and waterproof enclosure.

PERFORMANCE

Measurement Ranges (parts per million) 0-10, 0-50, 0-100, 0-200, 0-500, 0-1,000, 0-5,000, 0-10,000, and 0-20,000
Accuracy¹: + 1% of full scale. ¹Stated at constant temperature and pressure
Linearity: + 1% of full scale.
Response Time: 90% of full-scale response in less than 10 seconds (typical). The response time for ranges of 0-50 PPM or less depend to a great extent on the design of the sample delivery system including the materials used.
Sensor Type: Long-life Ambient Temperature Electrochemical Sensor (Optional CO2 Resistant Sensor Available).
Temperature Compensation: Standard.
Operating Temperature Range: 40° to 104° F (5° to 40° C)
Warranty: Two years electronics one year sensor.2 tolerant sensor is capable of providing accurate oxygen readings in gases containing up to 100% CO2 without shortening the life of the sensor.

CONSTRUCTION

Enclosure: Polycarbonate rated NEMA 1
Dimensions: 6.5 inches (165.1 mm) height 6.5 inches (165.1 mm) width 7.8 inches (196.9 mm) height Note: All dimensions are without optional equipment
Gas Connections: 1/4″ stainless steel compression

3520 with battery 0-1000 PPM no options	Series 3520 Portable Trace Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. Includes two manual isolation valves. "E" 0-1,000 PPM (Displays 0-19,999, calibrated in the 0-1,000 ppm range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet. No analog outputs. Warranty: 2-year electronics and 1-year sensor. No options included. No Options Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 1.5 psig, flowrate 0.5 to 1.5 LPM or customer will supply their own gas sample conditioning options.
3520 with battery 0-10000 PPM no options	Series 3520 Portable Trace Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. Includes two manual isolation valves. "G" 0-10,000 PPM (Displays 0-19,999, calibrated in the 0-10,000 ppm range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet. No analog outputs. Warranty: 2-year electronics and 1-year sensor. No options included. No Options Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 1.5 psig, flowrate 0.5 to 1.5 LPM or customer will supply their own gas sample conditioning options.
3520 with battery 0-100 PPM no options	Series 3520 Portable Trace Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. Includes two manual isolation valves. "I" 0-100 PPM (Displays 0-199.9, calibrated in the 0-100 ppm range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet. No analog outputs. Warranty: 2-year electronics and 1-year sensor. No options included. No Options Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 0.1 to 1.5 psig, flowrate 0.5 to 1.5 LPM or customer will supply their own gas sample conditioning options.

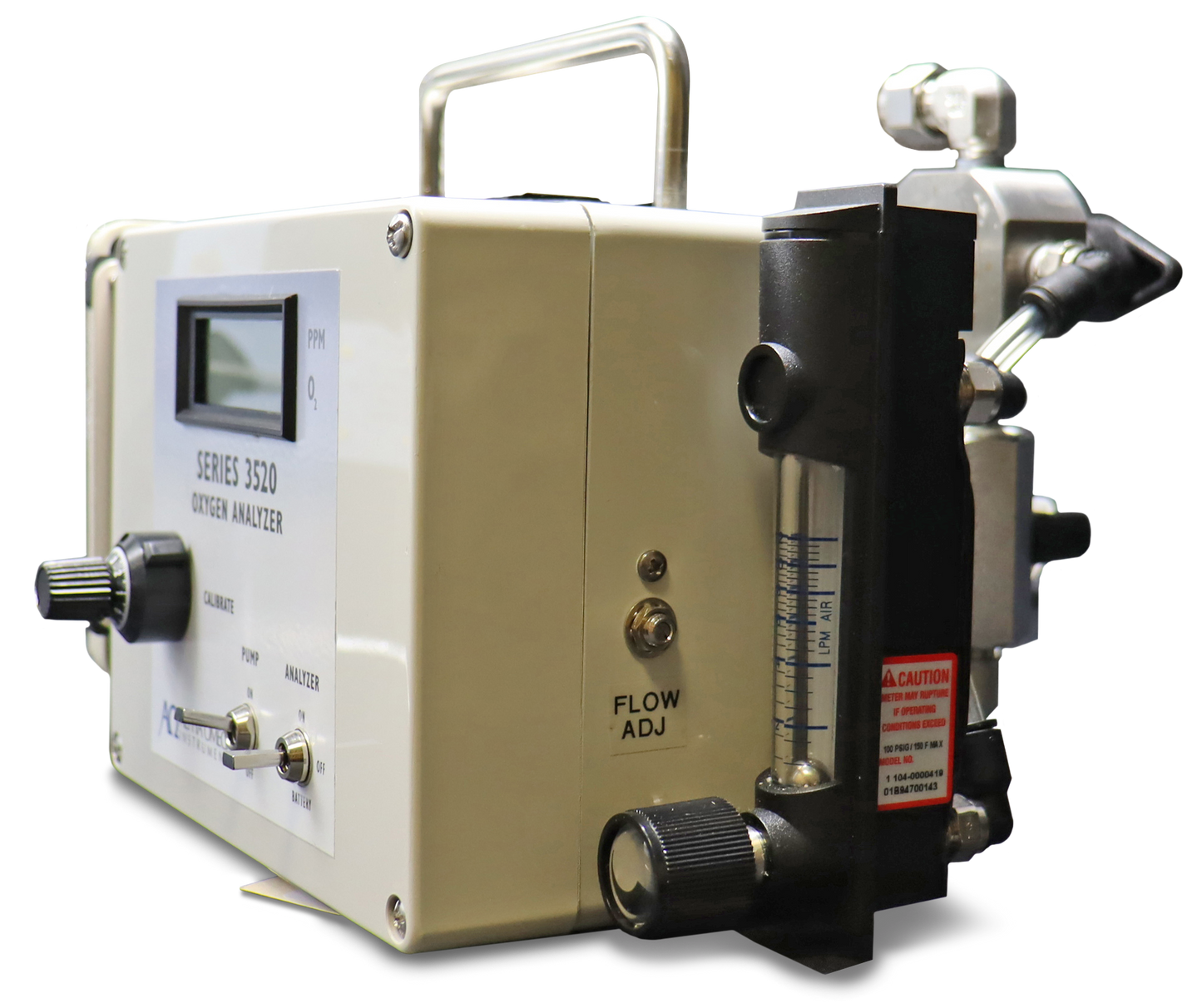

3520 with battery 0-1000 PPM flowmeter regulator	Series 3520 Portable Trace Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. Includes two manual isolation valves. "E" 0-1,000 PPM (Displays 0-19,999, calibrated in the 0-1,000 ppm range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet; a pressure regulator (max 100 psi) with a stainless-steel needle valve with 1/4" compression fitting on the sample inlet; a flowmeter without a control valve on the sample outlet. No analog outputs. Warranty: 2-year electronics and 1-year sensor. Pressure Regulator Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 1.5 to 100 psig, flowrate 0.5 to 1.5 LPM.
3520 with battery 0-1000 PPM flowmeter pump	Series 3520 Portable Trace Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. Includes two manual isolation valves. "E" 0-1,000 PPM (Displays 0-19,999, calibrated in the 0-1,000 ppm range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet; a flowmeter with a control valve on the sample outlet; a 12vdc sample pump. No analog outputs. Warranty: 2-year electronics and 1-year sensor. Sample Pump Application: For extractive gas sampling venting to atmosphere with sample gas pressure at atmosphere <0.1 psig, flowrate 0.5 to 1.5 LPM. Vacuums to 12.5 psia are permissible. For In-situ glovebox and chambers (instrument or sensor in chamber) with environment between atmosphere and 1.5 psig. Vacuums to 12.5 psia are permissible.
3520 with battery 0-10000 PPM flowmeter regulator	Series 3520 Portable Trace Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. Includes two manual isolation valves. "G" 0-10,000 PPM (Displays 0-19,999, calibrated in the 0-10,000 ppm range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet; a pressure regulator (max 100 psi) with a stainless-steel needle valve with 1/4" compression fitting on the sample inlet; a flowmeter without a control valve on the sample outlet. No analog outputs. Warranty: 2-year electronics and 1-year sensor. Pressure Regulator Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 1.5 to 100 psig, flowrate 0.5 to 1.5 LPM.
3520 with battery 0-10000 PPM flowmeter pump	Series 3520 Portable Trace Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. Includes two manual isolation valves. "G" 0-10,000 PPM (Displays 0-19,999, calibrated in the 0-10,000 ppm range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet; a flowmeter with a control valve on the sample outlet; a 12vdc sample pump. No analog outputs. Warranty: 2-year electronics and 1-year sensor. Sample Pump Application: For extractive gas sampling venting to atmosphere with sample gas pressure at atmosphere <0.1 psig, flowrate 0.5 to 1.5 LPM. Vacuums to 12.5 psia are permissible. For In-situ glovebox and chambers (instrument or sensor in chamber) with environment between atmosphere and 1.5 psig. Vacuums to 12.5 psia are permissible.
3520 with battery 0-100 PPM flowmeter regulator	Series 3520 Portable Trace Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. Includes two manual isolation valves. "I" 0-100 PPM (Displays 0-199.9, calibrated in the 0-100 ppm range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet; a pressure regulator (max 100 psi) with a stainless-steel needle valve with 1/4" compression fitting on the sample inlet; a flowmeter without a control valve on the sample outlet. No analog outputs. Warranty: 2-year electronics and 1-year sensor. Pressure Regulator Application: For extractive gas sampling venting to atmosphere with sample gas pressure between 1.5 to 100 psig, flowrate 0.5 to 1.5 LPM.
3520 with battery 0-100 PPM flowmeter pump	Series 3520 Portable Trace Oxygen Analyzer is equipped with liquid crystal display, built-in NICAD batteries, and a universal AC adapter that provides the ability to recharge the NICAD batteries even while powering the analyzer from the adapter. Includes two manual isolation valves. "I" 0-100 PPM (Displays 0-199.9, calibrated in the 0-100 ppm range). Features a standard durable polycarbonate enclosure rated for NEMA1. Includes standard connectors on the sample outlet; a flowmeter with a control valve on the sample outlet; a 12vdc sample pump. No analog outputs. Warranty: 2-year electronics and 1-year sensor. Sample Pump Application: For extractive gas sampling venting to atmosphere with sample gas pressure at atmosphere <0.1 psig, flowrate 0.5 to 1.5 LPM. Vacuums to 12.5 psia are permissible. For In-situ glovebox and chambers (instrument or sensor in chamber) with environment between atmosphere and 1.5 psig. Vacuums to 12.5 psia are permissible.
