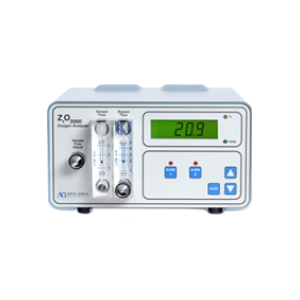

ZRO2000 Zirconia Oxygen Analyzer

Our ALPHA OMEGA INSTRUMENTS™ ZRO 2000™ FAST-RESPONSE Zirconia Oxygen Analyzer is designed to provide accurate and repeatable trace and percent oxygen measurements in a variety of gases.  Oxygen readings from parts per billion to 100% can be achieved with one instrument. The rugged and compact design is suited for industrial applications where continuous oxygen measurements are required.

Pricing for US, LATAM, and Canada Only.

Outside of US, LATAM, or Canada, please request a quote. sales.hou@process-insights.com

The ZRO 2000 Zirconia Oxygen Analyzer is a microprocessor-based instrument designed to measure gas phase oxygen concentrations over a range of 0-100%.  The front panel contains five switches that provide access to the analyzer’s settings. Oxygen values are displayed on a 0.7″ (17.8 mm) high 6-digit liquid crystal display (LCD). The instrument is equipped with two oxygen alarm relays. Both relays are Form C (SPDT) types rated at 10 amps at 115/230 VAC/ 30 VDC and are user configurable for fail-safe operation. In addition to the alarm relays, it has a built-in audible alarm and red LEDs for visual indication of an oxygen alarm condition. There are also two green LEDs to indicate whether the LCD is displaying parts per million (PPM) or percent (%). The audible alarm may be manually canceled at any time. If the audible alarm is canceled and the alarm event continues, indications of this condition will still be available through the front panel LEDs and relay contact(s). Two flow meters are standard equipment, one for the “Sample Flow” and another for the “Bypass Flow”.

Our ZRO 2000 Zirconia Oxygen Analyzer has a measuring range of 0.1 PPM to 100%. Input voltage 90-264 VAC, 50-60Hz has two scalable analog outputs are provided, 4-20 mADC and 0-20 mADC. Included is an easy to read, six-digit backlit LCD as well as two (2) SPDT Form C contacts rated 10A @ 30VDC/115/240 VAC.

FEATURES

• A factory Certificate of Performance Verification and Calibration is included at no additional charge. The product performance is verified in accordance with manufacturing specifications using a National Institute of Standards and Technology (NIST) traceable transfer calibrated standard gas mix.
• Advanced Solid-State Sensor:  Provides High Precision Oxygen Measurements
• Measures PPB to 100%:  One Instrument Does It All
• Response in Milliseconds:  Provides Exceptional Tracking of Process Conditions.
• Non-depleting Sensor:  Designed to Provide Years of Operation
• User Scalable Analog Outputs:  Better Defines the Concentration Range of Interest
• Dual User Adjustable Alarms:  Set Critical Process Limits
• Microprocessor Controller:  Helps to Ensure Dependable and Accurate Readings
• Built-in Sample By-Pass gas:  Helps to promote rapid transport of the sample gas
• Advanced Solid-State Sensor
• Non-depleting oxygen sensor
• 24-bit processing digital technology

PERFORMANCE

• Measurement Ranges: 0% to 100%
• Accuracy: Percent: ±2% of reading or 0.05% absolute whichever is greater. Trace: ±2% of reading or ±0.5ppm absolute whichever is greater.
• NOTE: The sample gas used with the ZRO 2000 must not contain any hydrocarbon vapors, hydrogen, carbon monoxide, or other reducing gases. Sample tubing should be cleaned for oxygen service. Please consult the factory for additional information.
• Response Time: < 5 seconds at 0.15 liters per minute (LPM) over 1 decade. The response time for measurements of less than 50 PPM or less depend to a great extent on the design of the sample delivery system including the materials used.
• Sensor Type: Zirconium Oxide
• Operating Temperature of Analyzer: 50° to 104°F (10° to 40°C)
• Warranty: Two Years Electronics, One Year Sensor

CONSTRUCTION

• Enclosure: Aluminum, rated NEMA 1
• Enclosure Dimensions: 13 inches (330 mm) – length 10.71 inches (272 mm) – width 6.3 inches (160 mm) – height – Note: All dimensions are without optional equipment
• Gas Connections: 1/4” stainless steel compression fittings

ELECTRICAL

• Display: 0.7″ (17.8 mm) high 6-digit liquid crystal display
• Resolution: 0.01 on highest reading & 0.001 ppm on lowest reading
• Input Power: Universal 90-264 VAC, 50 or 60 Hz
• Standard Outputs: (2) Selectable 0-20 mA DC or 4-20 mA DC, both scalable by user
• Oxygen Alarm Relays: Two (2) SPDT Form C contacts rated 10 A @ 30V DC /115/230 VAC. Alarms may be cleared manually or automatically, by user selection.
• Audible Alarm: Internal audible alarm
• Audible Alarm: Cancel Front panel switch

SAMPLE GAS CHARACTERISTICS

• Maximum Sample Temperature: 122°F (50°C)
• Maximum Sample Pressure: 0.1 to 0.5 pounds per square inch gauge (PSIG) (0.007 to 0.035 kg/cm2).
• Sample Gas Moisture Limits: 85% RH
